Spécifications techniques
| Type de pompe | CRE |
| Débit nominal (m³/h) | 10.43 m³/h |
| Hauteur nominale (m) | 11.56 m |
| Hauteur max. (m) | 14.2 m |
| Nombre d'étages | 2 |
| Indice de rendement minimal (MEI) | 0.70 |
| Puissance P2 (kW) | 0.75 kW |
| Phases | 1 |
| Tension (V) | 200-240 V |
| Fréquence (Hz) | 50 / 60 Hz |
| Indice de protection | IP55 |
| Convertisseur de fréquence | Built-in |
| Temp. liquide max. (°C) | 120 °C |
| Temp. liquide min. (°C) | -20 °C |
| Temp. ambiante max. (°C) | 50 °C |
| Pression de service max. | 16 bar |
| Raccordement | Oval / Rp |
| Pression nominale du raccord | PN 16 |
| Matériau de la roue | Stainless steel |
| Garniture mécanique | HQQE |
| Longueur (mm) | 200 mm |
| Hauteur (mm) | 80 mm |
| Largeur (mm) | 256 mm |
| Poids brut | 39 kg |
| Poids net | 36 kg |
| Homologations | CE,UKCA,SEPRO,RCM, |
| Référence moteur | 98362272 |
| Code EAN | 5715116753478 |

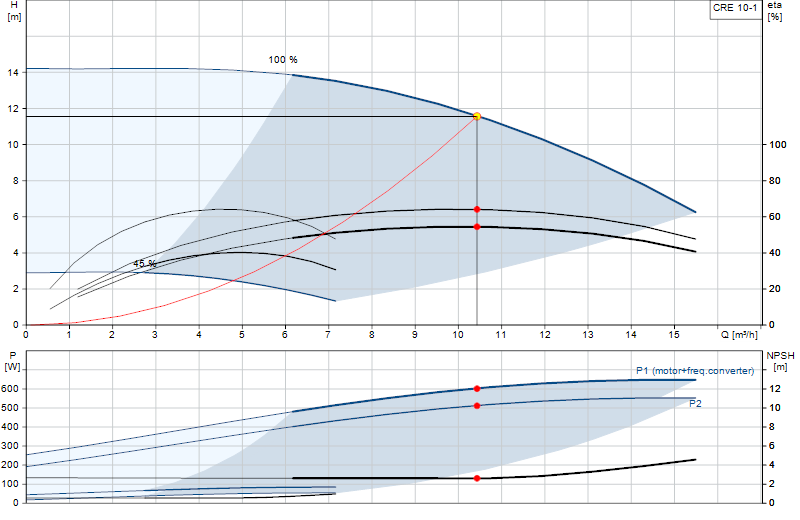

Courbe de performance
Survolez la courbe pour lire le débit et la hauteur en chaque point.
