Spécifications techniques
| Type de pompe | CR |
| Débit nominal (m³/h) | 32 m³/h |
| Hauteur nominale (m) | 33.1 m |
| Hauteur max. (m) | 42.1 m |
| Nombre d'étages | 6 |
| Indice de rendement minimal (MEI) | 0.70 |
| Puissance P2 (kW) | 4 kW |
| Phases | 3 |
| Tension (V) | 380-415D V |
| Fréquence (Hz) | 50 Hz |
| Indice de protection | IP55 Dust/Jetting |
| Convertisseur de fréquence | None |
| Temp. liquide max. (°C) | 120 °C |
| Temp. liquide min. (°C) | -30 °C |
| Temp. ambiante max. (°C) | 60 °C |
| Pression de service max. | 30 bar |
| Raccordement | DIN |
| Pression nominale du raccord | PN 40 |
| Matériau de la roue | Stainless steel |
| Garniture mécanique | HQQE |
| Longueur (mm) | 365 mm |
| Hauteur (mm) | 140 mm |
| Largeur (mm) | 331 mm |
| Poids brut | 160 kg |
| Poids net | 127 kg |
| Homologations | CE,EAC,UKCA,SEPRO,RCM, |
| Référence moteur | 86U15813 |
| Code EAN | 5700836472587 |

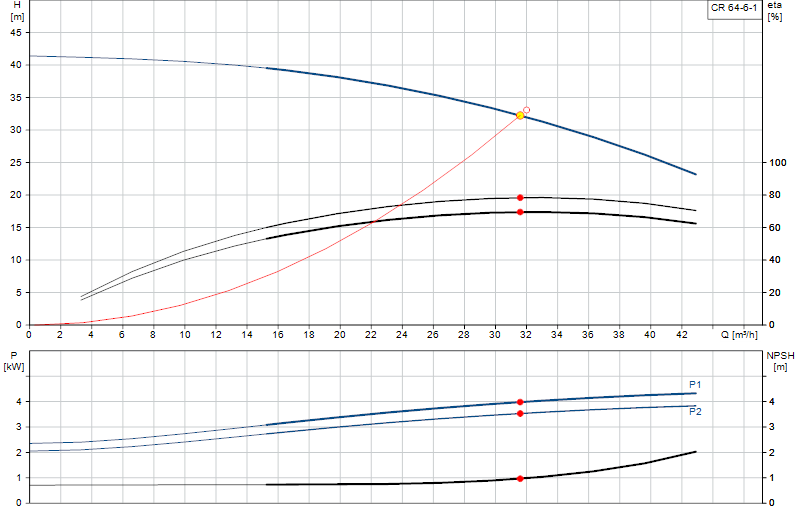

Courbe de performance
Survolez la courbe pour lire le débit et la hauteur en chaque point.
