Spécifications techniques
| Débit nominal (m³/h) | 6 m³/h |
| Hauteur nominale (m) | 30 m |
| Phases | 1 |
| Tension nominale | 200-240 V |
| Fréquence (Hz) | 50 Hz |
| Indice de protection | IP55 |
| Classe d'isolation | F |
| Convertisseur de fréquence | Built-in |
| Temp. liquide max. (°C) | 60 °C |
| Temp. liquide min. (°C) | 0 °C |
| Temp. ambiante max. (°C) | 55 °C |
| Pression de service max. | 10 bar |
| Pression nominale du raccord | PN 10 |
| Matériau du corps de pompe | Stainless steel |
| Matériau de la roue | Stainless steel |
| Garniture mécanique | AVBE |
| Longueur (mm) | 486 mm |
| Hauteur (mm) | 90 mm |
| Largeur (mm) | 359 mm |
| Poids brut | 30 kg |
| Poids net | 21.7 kg |
| Homologations | CE,EAC |
| Code EAN | 5711498951426 |

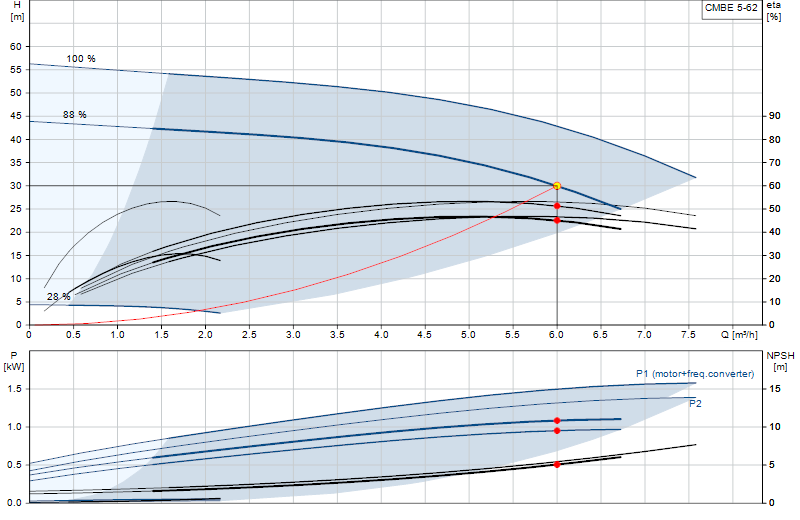

Courbe de performance
Survolez la courbe pour lire le débit et la hauteur en chaque point.
Documents et fiches techniques
-
CMB, CMBE and CMBE TWIN (Data booklet)
Data booklets · English 7,7 MB -
MGE (Data sheet)
Data sheets · English 0,5 MB -
CMB PM, CMB PT, CMBE (Installation and operating instructions)
Installation & operating instructions · English 2,0 MB -
CMB, CMB-SP Booster PM1, PM2 (Installation and operating instructions)
Installation & operating instructions · English 0,7 MB -
CMBE - With drinking-water approved tank (I & O instructions)
Installation & operating instructions · English 1,5 MB -
CMBE (I & O instructions)
Installation & operating instructions · English 3,9 MB -
CMBE TWIN (Safety instructions and other important information)
Installation & operating instructions · English 1,0 MB -
CME Booster (Installation and operating instructions) (GB+ZH+IND version)
Installation & operating instructions · English 14,5 MB -
CME Booster, Safety instructions (GB+AR version)
Installation & operating instructions · English 2,7 MB -
Moroccan declaration of conformity, CMBE (Declaration)
Installation & operating instructions · English 0,2 MB -
CMBE, CMBE TWIN (Quick Guide)
Quick Guides · English 9,1 MB -
CMBE, CMBE TWIN (Quick Guide)
Quick Guides · English 7,2 MB -
RPS Sensors (Quick guide)
Quick Guides · English 2,6 MB -
A Wide Range (English) (Product brochure)
Product Brochures · English 46,4 MB -
CMB and CMBE selection guide
Product Brochures · English 0,6 MB -
CMBE BOOSTER (Product brochure)
Product Brochures · English 1,0 MB -
DCW Quick Selection guide - full with UPA (Product brochure)
Product Brochures · English 1,6 MB -
DCW Quick Selection guide - full without UPA (Product brochure)
Product Brochures · English 1,6 MB -
DOMESTIC COLD WATER FOR PRESSURE BOOSTING (Product brochure)
Product Brochures · English 0,8 MB -
DOMESTIC WATER CATALOGUE - 2020, India version (Product brochure)
Product Brochures · English 18,2 MB -
INTELLIGENT WATER BOOSTING MADE SMARTER (Product brochure)
Product Brochures · English 7,0 MB -
Intelligent water boosting made smarter (Product brochure)
Product Brochures · English 2,4 MB -
Mechanical shaft seals for pumps (Handbook)
Product Brochures · English 6,9 MB -
CM Booster (CMBE, CM PT, CM PS) (Service kit instructions)
Service · English 0,6 MB -
CM, CME and Boosters (Service Kit Catalogue)
Service · English 3,4 MB
Variantes et codes alternatifs
Alternatives équivalentes
Pompes de la même classe hydraulique que 98652435 (débit et hauteur équivalents), disponibles au catalogue.
