Spécifications techniques
| Type de pompe | CM |
| Indice de rendement minimal (MEI) | 0.7 |
| Phases | 1 |
| Fréquence (Hz) | 50 Hz |
| Indice de protection | IP55 |
| Classe d'isolation | F |
| Convertisseur de fréquence | None |
| Temp. liquide max. (°C) | 40 °C |
| Temp. liquide min. (°C) | -20 °C |
| Temp. ambiante max. (°C) | 55 °C |
| Pression de service max. | 10 bar |
| Raccordement | Rp |
| Matériau du corps de pompe | Cast iron |
| Matériau de la roue | Stainless steel |
| Garniture mécanique | AVBE |
| Longueur (mm) | 434 mm |
| Hauteur (mm) | 75 mm |
| Poids brut | 17.2 kg |
| Poids net | 14.7 kg |
| Homologations | CE,EAC,UKCA |
| Code EAN | 5700310917450 |

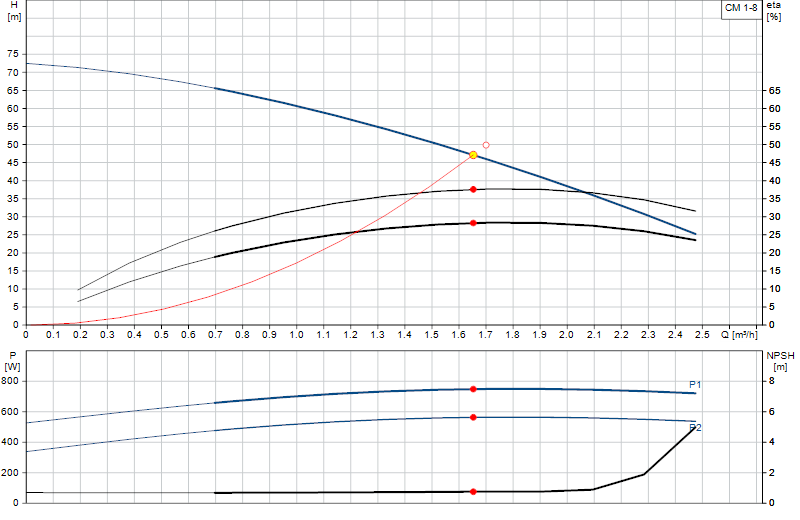

Courbe de performance
Survolez la courbe pour lire le débit et la hauteur en chaque point.
Documents et fiches techniques
-
CM, CME (Service instructions)
Service · English 2,4 MB -
IRRIGATION PUMP HANDBOOK (System & Concept brochure)
System & Concept brochures · English 22,3 MB -
CME, CM (Data booklet)
Data booklets · English 37,8 MB -
CM (I & O instructions)
Installation & operating instructions · English 1,2 MB -
Moroccan declaration of conformity, CM, CMV, CM-L (Instruction)
Installation & operating instructions · English 0,2 MB -
CM (Quick Guide)
Quick Guides · English 4,9 MB -
A Wide Range (English) (Product brochure)
Product Brochures · English 46,4 MB -
CM, CME, COMPACT PUMPS FOR DEMANDING APPLICATIONS (Product brochure)
Product Brochures · English 1,1 MB -
DOMESTIC WATER CATALOGUE - 2020, India version (Product brochure)
Product Brochures · English 18,2 MB -
GRUNDFOS CM, Horizontal multi-stage pumps up to 7.5 kW (Product brochure)
Product Brochures · English 3,1 MB -
Industrial Cooling White paper (Product brochure)
Product Brochures · English 0,5 MB -
Industrial Pump Handbook (Handbook)
Product Brochures · English 22,6 MB -
Mechanical shaft seals for pumps (Handbook)
Product Brochures · English 6,9 MB -
PRECISION AND FLEXIBILITY WHERE IT REALLY MATTERS (Product brochure)
Product Brochures · English 3,1 MB -
CM 1, 3, 5, 10, 15, 25 - A / I / G / CMV 3, 5 (Service kit instruction)
Service · English 2,6 MB -
CM, CME (Recommended spare parts) (Service Kit Catalogue)
Service · English 0,1 MB -
CM, CME and Boosters (Service Kit Catalogue)
Service · English 3,4 MB -
CM, CME and Boosters (Service kit catalogue)
Service · English 2,7 MB -
CM, Impeller replacement (Service kit instructions)
Service · English 1,3 MB
