Spécifications techniques
| Type de pompe | CM |
| Indice de rendement minimal (MEI) | 0.7 |
| Phases | 1 |
| Fréquence (Hz) | 50 Hz |
| Indice de protection | IP55 |
| Classe d'isolation | F |
| Convertisseur de fréquence | None |
| Temp. liquide max. (°C) | 90 °C |
| Temp. liquide min. (°C) | -20 °C |
| Temp. ambiante max. (°C) | 55 °C |
| Pression de service max. | 10 bar |
| Raccordement | Rp |
| Matériau du corps de pompe | Cast iron |
| Matériau de la roue | Stainless steel |
| Garniture mécanique | AVBE |
| Longueur (mm) | 358 mm |
| Hauteur (mm) | 75 mm |
| Poids brut | 15.3 kg |
| Poids net | 12.8 kg |
| Homologations | CE,EAC,UKCA |
| Code EAN | 5715121095952 |

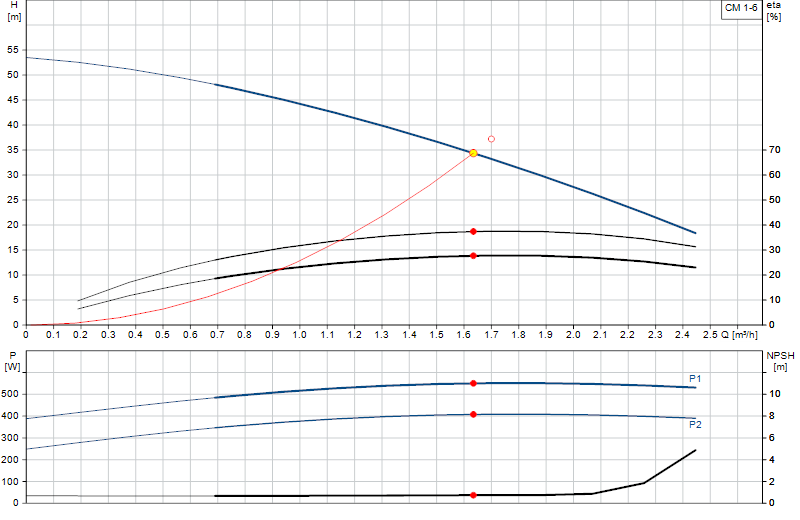

Courbe de performance
Survolez la courbe pour lire le débit et la hauteur en chaque point.
