Especificaciones técnicas
| Caudal nominal (m³/h) | 1.88 l/s |
| Altura nominal (m) | 6.56 m |
| Altura máx. (m) | 9 m |
| Potencia absorbida P1 (W) | 780 W |
| Fases | 1 |
| Tensión nominal | 220-240 V |
| Frecuencia (Hz) | 50 Hz |
| Grado de protección | IP68 |
| Clase de aislamiento | B |
| Temp. líquido máx. (°C) | 40 °C |
| Temp. líquido mín. (°C) | 0 °C |
| Temp. ambiente máx. (°C) | 40 °C |
| Conexión de tubería | R |
| Tamaño de conexión | 1 1/4 inch |
| Material del cuerpo de bomba | Polypropylene |
| Material del impulsor | Composite |
| Peso bruto | 7.36 kg |
| Peso neto | 6.6 kg |
| Homologaciones | CE,LGA,VDE,UKCA,SEPRO |
| Código EAN | 5700830761397 |

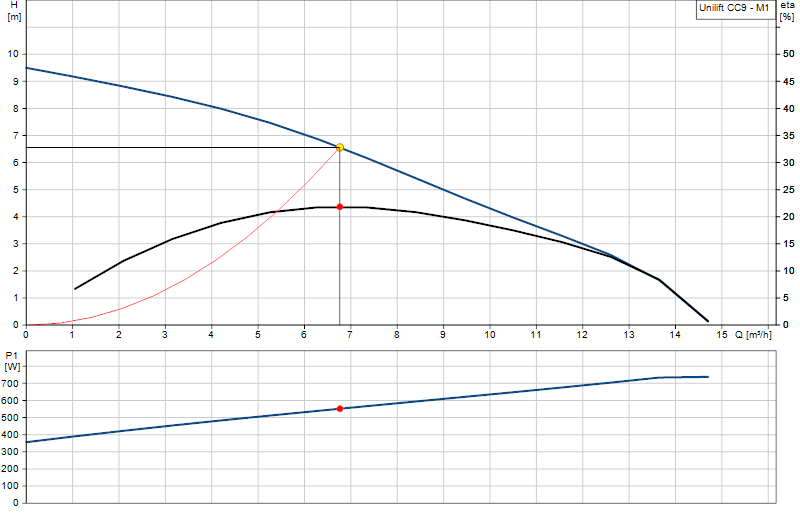

Curva de rendimiento
Pasa el ratón por la curva para leer caudal y altura en cada punto.
Documentos y fichas técnicas
-
Unilift CC (Service instruction)
Service · English 0,8 MB -
Unilift CC, KP, AP and KPC (Data booklet)
Data booklets · English 24,0 MB -
Moroccan declaration of conformity, Unilift CC (Declaration)
Installation & operating instructions · English 0,2 MB -
UNILIFT CC 5, CC 7, CC 9 (Installation and operating instructions)
Installation & operating instructions · English 4,7 MB -
Unilift CC 5, CC 7, CC 9 (Installation and operating instructions)
Installation & operating instructions · English 94,3 MB -
Unilift CC, KPC & KPC 24/7 (Safety instructions)
Installation & operating instructions · English 1,1 MB -
Unilift CC 5, Unilift CC 7, Unilift CC 9 (Quick Guide)
Quick Guides · English 3,6 MB -
Unilift CC, MULTI-BOX (B-CC7) (Quick Guide)
Quick Guides · English 1,7 MB -
DCW Quick Selection guide - full with UPA (Product brochure)
Product Brochures · English 1,6 MB -
DCW Quick Selection guide - full without UPA (Product brochure)
Product Brochures · English 1,6 MB -
DCW, Quick Selection guide, Drainage (Product brochure)
Product Brochures · English 0,2 MB -
DOMESTIC WATER CATALOGUE - 2020, India version (Product brochure)
Product Brochures · English 18,2 MB -
Grundfos MULTIBOX - Your ultimate flood rescue solution
Product Brochures · English 0,6 MB -
GRUNDFOS WASTEWATER PRODUCTS (Product brochure)
Product Brochures · English 3,6 MB -
Quick Selection guide Drainage (Product brochure)
Product Brochures · English 0,2 MB -
Unilift CC (Drainage pumps)
Product Brochures · English 1,1 MB -
UNILIFT CC, MULTI-PURPOSE DRAINAGE PUMPS (Product brochure)
Product Brochures · English 0,3 MB -
Unilift AP, APB, APG, CC, KP (Service Kit Catalogue)
Service · English 2,0 MB -
Unilift CC 5, CC 7, CC 9 (Service Kit Instruction)
Service · English 0,8 MB -
Unilift CC Cable/float switch (Service kit instruction)
Service · English 0,8 MB -
Unilit CC, Motor (Service Kit Instruction)
Service · English 1,3 MB
Alternativas equivalentes
Bombas de la misma clase hidráulica que 96280969 (caudal y altura equivalentes), disponibles en el catálogo.
