Especificaciones técnicas
| Altura máx. (m) | 14 m |
| Fases | 1 |
| Tensión nominal | 230 V |
| Frecuencia (Hz) | 50 Hz |
| Grado de protección | IP68 |
| Clase de aislamiento | F |
| Temp. líquido máx. (°C) | 40 °C |
| Temp. líquido mín. (°C) | 0 °C |
| Temp. ambiente máx. (°C) | 40 °C |
| Conexión de tubería | Rp |
| Tamaño de conexión | 2 inch |
| Material del cuerpo de bomba | Stainless steel |
| Material del impulsor | Stainless steel |
| Longitud (mm) | 234 mm |
| Altura (mm) | 73 mm |
| Anchura (mm) | 210 mm |
| Peso bruto | 12.5 kg |
| Peso neto | 11 kg |
| Homologaciones | CE,RCM,VDE,LGABG,EAC,MORO, |
| Código EAN | 5700391489969 |

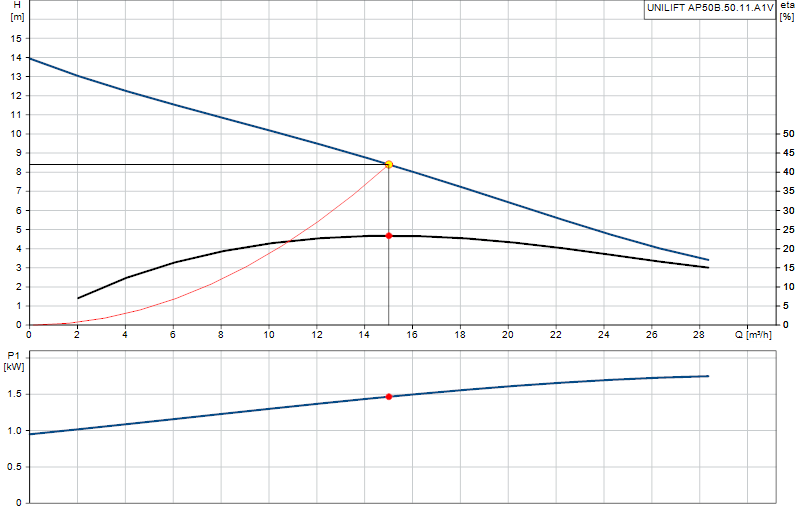

Curva de rendimiento
Pasa el ratón por la curva para leer caudal y altura en cada punto.
Documentos y fichas técnicas
-
Unilift CC, KP, AP and KPC (Data booklet)
Data booklets · English 24,0 MB -
Moroccan declaration of conformity, Unilift AP, Unilift KP, APB (Declaration)
Installation & operating instructions · English 0,2 MB -
UNILIFT AP, APB and APG - Control box (Safety instructions)
Installation & operating instructions · English 0,4 MB -
Unilift AP, APB, KP (Safety instructions)
Installation & operating instructions · English 1,0 MB -
Unilift AP12, AP35, AP50, Control box (Installation and operating instructions)
Installation & operating instructions · English 0,3 MB -
Unilift AP35B, AP50B (I & O instructions)
Installation & operating instructions · English 1,5 MB -
Unilift AP35B, AP50B (Installation and operating instructions)
Installation & operating instructions · English 80,7 MB -
DCW Quick Selection guide - full with UPA (Product brochure)
Product Brochures · English 1,6 MB -
DCW Quick Selection guide - full without UPA (Product brochure)
Product Brochures · English 1,6 MB -
DCW, Quick Selection guide, Drainage (Product brochure)
Product Brochures · English 0,2 MB -
DOMESTIC WATER CATALOGUE - 2020, India version (Product brochure)
Product Brochures · English 18,2 MB -
GRUNDFOS WASTEWATER PRODUCTS (Product brochure)
Product Brochures · English 3,6 MB -
Quick Selection guide Drainage (Product brochure)
Product Brochures · English 0,2 MB -
UNILIFT AP/AP BASIC RANGE
Product Brochures · English 0,3 MB -
Unilift AP, APB, APG, CC, KP (Service Kit Catalogue)
Service · English 2,0 MB -
UNILIFT APB MOTOR (Service kit instructions)
Service · English 1,7 MB
