Especificaciones técnicas
| Tipo de bomba | TPE |
| Caudal nominal (m³/h) | 7.1 m³/h |
| Altura nominal (m) | 15 m |
| Índice de eficiencia mínima (MEI) | 0.64 |
| Potencia P2 (kW) | 0.75 kW |
| Fases | 1 |
| Tensión (V) | 200-240 V |
| Frecuencia (Hz) | 50 Hz |
| Grado de protección | IP55 |
| Convertidor de frecuencia | Built-in |
| Temp. líquido máx. (°C) | 140 °C |
| Temp. líquido mín. (°C) | 0 °C |
| Temp. ambiente máx. (°C) | 50 °C |
| Presión máx. de servicio | 10 bar |
| Conexión de tubería | DIN |
| Presión nominal de conexión | PN 6/10 |
| Distancia entre bocas (mm) | 280 mm |
| Material del cuerpo de bomba | Cast iron |
| Material del impulsor | Stainless steel |
| Cierre mecánico | BQBE |
| Longitud (mm) | 280 mm |
| Altura (mm) | 79 mm |
| Peso bruto | 65.7 kg |
| Peso neto | 56.2 kg |
| Referencia del motor | 98248266 |
| Código EAN | 5712608955891 |

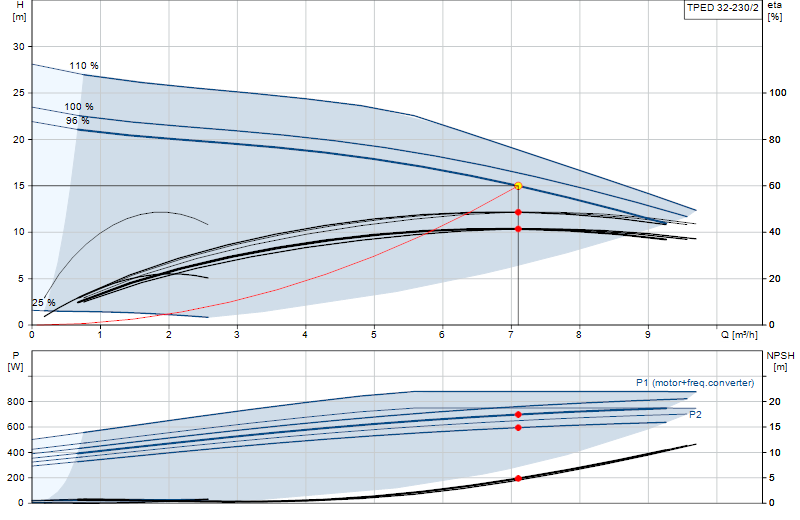

Curva de rendimiento
Pasa el ratón por la curva para leer caudal y altura en cada punto.
Documentos y fichas técnicas
-
TP Series 400 (Service Instructions)
Service · English 0,9 MB -
TP, TPD, TPE, TPED Series 300 (Service Instructions)
Service · English 1,1 MB -
TPE2, TPE2 D, TPE3, TPE3 D (Service instructions)
Service · English 1,4 MB -
TP, TPD, TPE, TPED, TPE2, TPE2 D, TPE3, TPE3 D, In-line circulator pumps (Data booklet)
Data booklets · English 29,6 MB -
MGE (Data sheet)
Data sheets · English 0,5 MB -
TP (Series 400) (Installation and operating instructions)
Installation & operating instructions · English 6,8 MB -
TPE, TPED Series 1000; NBE, NBGE, NKE, NKGE; TPE, TPED, NBE, NKE Series 2000 (I&O)
Installation & operating instructions · English 6,5 MB -
TPE, TPED, NBE, NBGE, MTBE, NKE, NKGE, TPE, TPED, NBE, NKE Series 2000, - below 15 kW, 2-pole and 11 kW, 4-pole
Installation & operating instructions · English 4,8 MB -
TPE, TPED, NKE, NKGE, NBE, NBGE (Below 3 kW) (Installation and operating instructions)
Installation & operating instructions · English 6,5 MB -
TPE, TPED, NKE, NKGE, NBE, NBGE, MTBE (From 3.0 kW, 2-Pole and from 1.5 kW, 4-Pole) (I/O)
Installation & operating instructions · English 4,3 MB -
TPE, TPED; TPE2, TPE2 D, TPE3, TPE3 D; NBE, NBGE, NKE, NKGE; MTBE (Safety instructions)
Installation & operating instructions · English 1,8 MB -
TPE2 (D), TPE3 (D), With sensor (I & O instructions)
Installation & operating instructions · English 5,6 MB -
TPE2 (D),TPE3 (D) (Installation and operating instructions)
Installation & operating instructions · English 6,6 MB -
TPE, NKE, NBE, TPED (Quick Guide)
Quick Guides · English 0,3 MB -
A Wide Range (English) (Product brochure)
Product Brochures · English 46,4 MB -
Beverage application pumps - Refresh your business with Grundfos (Product brochure)
Product Brochures · English 5,8 MB -
GRUNDFOS iSOLUTIONS IN COMMERCIAL BUILDINGS (Product brochure)
Product Brochures · English 9,2 MB -
GRUNDFOS iSOLUTIONS in Commercial Buildings (Product brochures)
Product Brochures · English 9,1 MB -
Grundfos iSOLUTIONS in Commercial Buildings (Product brochures)
Product Brochures · English 6,2 MB -
Industrial Pump Handbook (Handbook)
Product Brochures · English 22,6 MB -
Mechanical shaft seals for pumps (Handbook)
Product Brochures · English 6,9 MB -
Process Driven Engineering (Leaflet)
Product Brochures · English 5,7 MB -
TP/TPE (Product brochure)
Product Brochures · English 3,8 MB -
TP, TPE, TPD, TPED (Recommended spare parts) (Service Kit Catalogue)
Service · English 0,4 MB -
TP, TPE, TPD, TPED (Service Kit Catalogue)
Service · English 1,3 MB -
TPE2 D, TPE3 D (Two way flap) (Service kit instructions)
Service · English 1,0 MB -
TPE2, TPE2 D, TPE3, TPE3 D (Impeller, neck ring, shaft, shaft seal)
Service · English 3,2 MB -
TPE2, TPE2 D, TPE3, TPE3 D (Recommended spare parts) (Service Kit Catalogue)
Service · English 0,1 MB -
TPE2, TPE2 D, TPE3, TPE3 D (Service Kit Catalogue)
Service · English 0,4 MB -
TPE2/3 (D) Medium and Large (Service Instructions)
Service · English 15,0 MB -
TPE2/3 (D) Medium and Large (Service Kit Catalogue)
Service · English 3,6 MB
