Especificaciones técnicas
| Tipo de bomba | TPE3 |
| Caudal nominal (m³/h) | 48.9 m³/h |
| Altura nominal (m) | 12.6 m |
| Índice de eficiencia mínima (MEI) | 0.70 |
| Potencia P2 (kW) | 2.2 kW |
| Fases | 3 |
| Tensión (V) | 380-500 V |
| Frecuencia (Hz) | 50 Hz |
| Grado de protección | IP55 |
| Convertidor de frecuencia | Built-in |
| Temp. líquido máx. (°C) | 120 °C |
| Temp. líquido mín. (°C) | 0 °C |
| Temp. ambiente máx. (°C) | 50 °C |
| Presión máx. de servicio | 6 bar |
| Conexión de tubería | DIN |
| Presión nominal de conexión | PN 6 |
| Distancia entre bocas (mm) | 360 mm |
| Material del cuerpo de bomba | Cast iron |
| Material del impulsor | Composite |
| Cierre mecánico | BQBE |
| Longitud (mm) | 360 mm |
| Altura (mm) | 97 mm |
| Peso bruto | 84.2 kg |
| Peso neto | 70.9 kg |
| Referencia del motor | 99138048 |
| Código EAN | 5713826368210 |

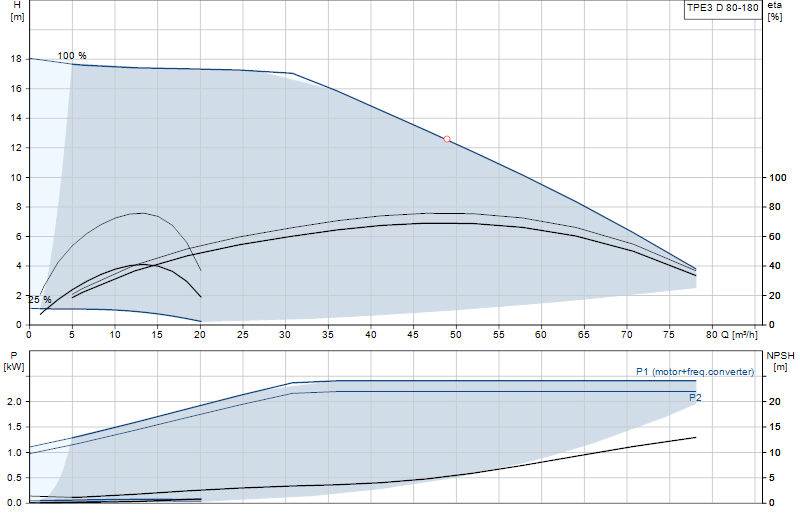

Curva de rendimiento
Pasa el ratón por la curva para leer caudal y altura en cada punto.
