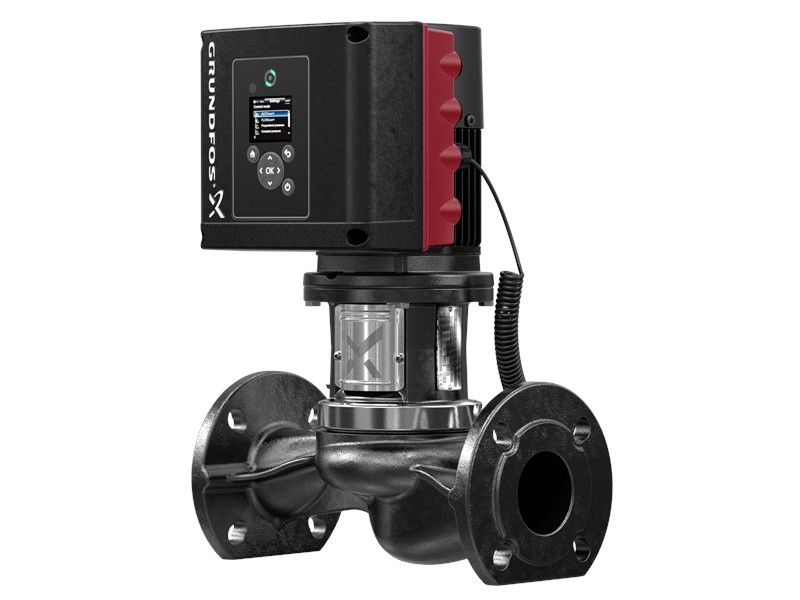

Especificaciones técnicas
| Tipo de bomba | TPE3 |
| Caudal nominal (m³/h) | 24.9 m³/h |
| Altura nominal (m) | 5.7 m |
| Índice de eficiencia mínima (MEI) | 0.70 |
| Potencia P2 (kW) | 0.55 kW |
| Fases | 1 |
| Tensión (V) | 200-240 V |
| Frecuencia (Hz) | 50 / 60 Hz |
| Grado de protección | IP55 |
| Convertidor de frecuencia | Built-in |
| Temp. líquido máx. (°C) | 120 °C |
| Temp. líquido mín. (°C) | 0 °C |
| Temp. ambiente máx. (°C) | 50 °C |
| Presión máx. de servicio | 10 bar |
| Conexión de tubería | DIN |
| Presión nominal de conexión | PN 6/10 |
| Distancia entre bocas (mm) | 340 mm |
| Material del cuerpo de bomba | Stainless steel |
| Material del impulsor | Composite |
| Cierre mecánico | BQBE |
| Longitud (mm) | 340 mm |
| Altura (mm) | 74 mm |
| Peso bruto | 36.9 kg |
| Peso neto | 28.2 kg |
| Referencia del motor | 99137985 |
| Código EAN | 5712608980442 |

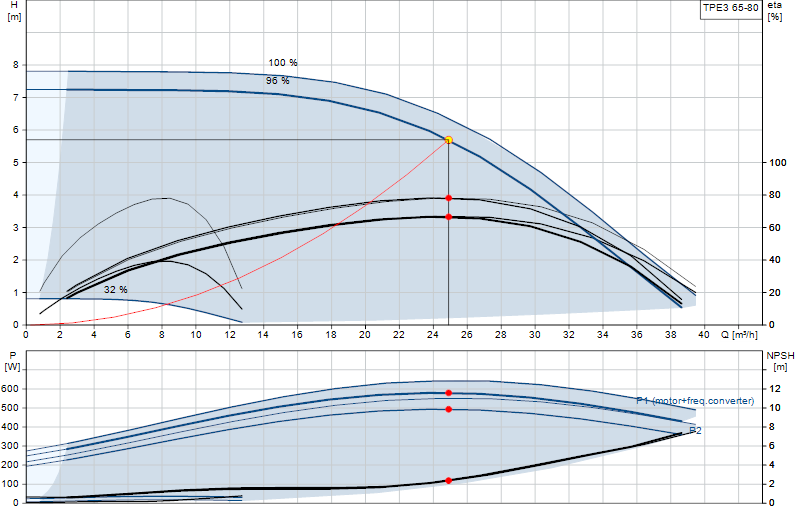

Curva de rendimiento
