Especificaciones técnicas
| Tipo de bomba | TPE2 |
| Caudal nominal (m³/h) | 4.91 m³/h |
| Altura nominal (m) | 3.29 m |
| Potencia P2 (kW) | 0.12 kW |
| Fases | 1 |
| Tensión (V) | 200-240 V |
| Frecuencia (Hz) | 50 / 60 Hz |
| Grado de protección | IP55 |
| Convertidor de frecuencia | Built-in |
| Temp. líquido máx. (°C) | 120 °C |
| Temp. líquido mín. (°C) | -25 °C |
| Temp. ambiente máx. (°C) | 50 °C |
| Presión máx. de servicio | 10 bar |
| Conexión de tubería | G |
| Tamaño de conexión | 2 inch |
| Presión nominal de conexión | PN 10 |
| Distancia entre bocas (mm) | 180 mm |
| Material del cuerpo de bomba | Cast iron |
| Material del impulsor | Composite |
| Cierre mecánico | BQQE |
| Longitud (mm) | 180 mm |
| Altura (mm) | 48 mm |
| Peso bruto | 14.2 kg |
| Peso neto | 12.5 kg |
| Referencia del motor | 98667062 |
| Código EAN | 5715471139320 |

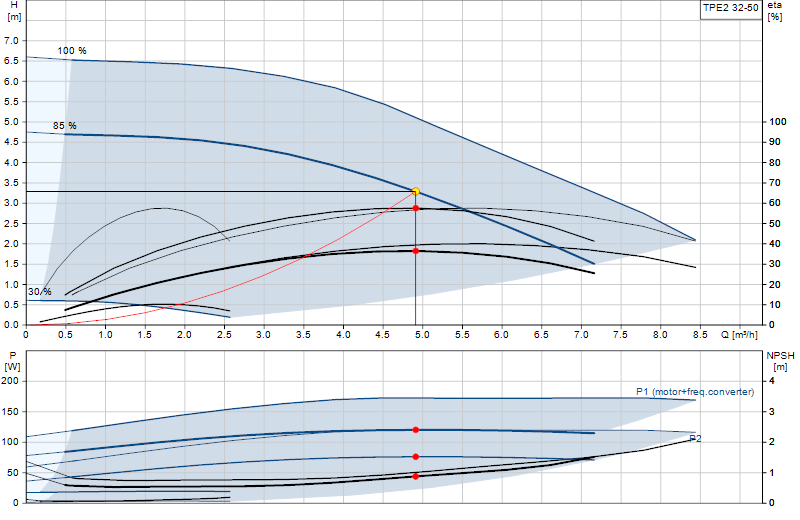

Curva de rendimiento
Pasa el ratón por la curva para leer caudal y altura en cada punto.
