Especificaciones técnicas
| Tipo de bomba | TP |
| Caudal nominal (m³/h) | 1312 m³/h |
| Altura nominal (m) | 35.52 m |
| Índice de eficiencia mínima (MEI) | 0.70 |
| Potencia P2 (kW) | 160 kW |
| Fases | 3 |
| Tensión (V) | 380-415D/660Y V |
| Frecuencia (Hz) | 50 Hz |
| Grado de protección | IP55 |
| Convertidor de frecuencia | None |
| Temp. líquido máx. (°C) | 120 °C |
| Temp. líquido mín. (°C) | -25 °C |
| Temp. ambiente máx. (°C) | 55 °C |
| Presión máx. de servicio | 16 bar |
| Conexión de tubería | DIN |
| Presión nominal de conexión | PN 16 |
| Distancia entre bocas (mm) | 1400 mm |
| Material del cuerpo de bomba | Ductile iron |
| Material del impulsor | Cast iron |
| Cierre mecánico | BQQE |
| Longitud (mm) | 1400 mm |
| Altura (mm) | 361 mm |
| Peso bruto | 2120 kg |
| Peso neto | 1990 kg |
| Referencia del motor | 93123988 |
| Código EAN | 5715472521162 |

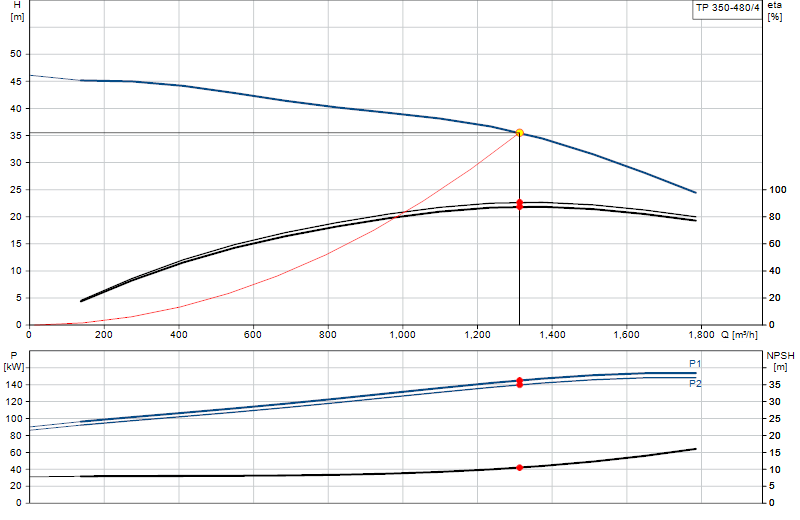

Curva de rendimiento
Pasa el ratón por la curva para leer caudal y altura en cada punto.
