Especificaciones técnicas
| Tipo de bomba | SP60 |
| Número de etapas | 15 |
| Índice de eficiencia mínima (MEI) | 0.40 |
| Potencia P2 (kW) | 26 kW |
| Fases | 3 |
| Tensión (V) | 500-525 V |
| Frecuencia (Hz) | 50 Hz |
| Grado de protección | IP68 |
| Temp. líquido máx. (°C) | 40 °C |
| Temp. líquido mín. (°C) | -15 °C |
| Presión máx. de servicio | 60 bar |
| Conexión de tubería | Rp |
| Tamaño de conexión | 4 inch |
| Material del impulsor | Stainless steel |
| Peso bruto | 153 kg |
| Peso neto | 115 kg |
| Homologaciones | CE,EAC,UKCA,SEPRO,MOROCCO |
| Referencia del motor | 78185619 |
| Código EAN | 5700394038102 |

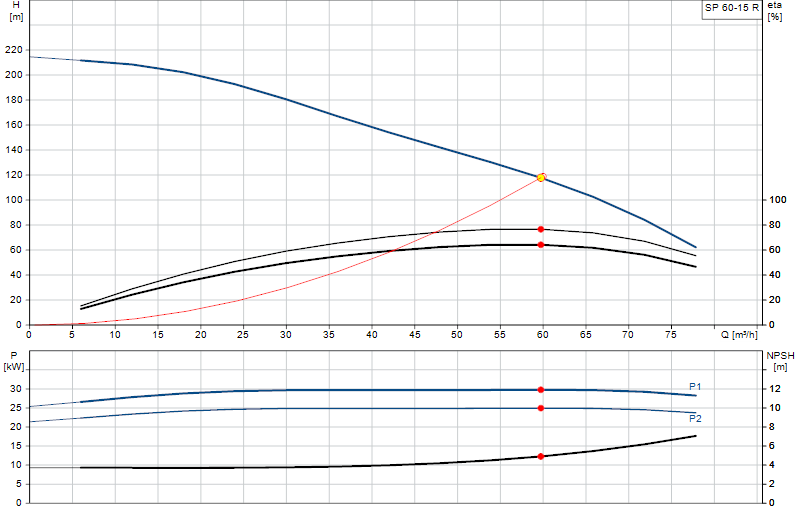

Curva de rendimiento
Pasa el ratón por la curva para leer caudal y altura en cada punto.
