Especificaciones técnicas
| Tipo de bomba | SP46 |
| Número de etapas | 26 |
| Índice de eficiencia mínima (MEI) | 0.40 |
| Potencia P2 (kW) | 45 kW |
| Fases | 3 |
| Tensión (V) | 500-525 V |
| Frecuencia (Hz) | 50 Hz |
| Grado de protección | IP68 |
| Temp. líquido máx. (°C) | 45 °C |
| Temp. líquido mín. (°C) | -15 °C |
| Presión máx. de servicio | 60 bar |
| Conexión de tubería | R |
| Tamaño de conexión | 4 inch |
| Material del impulsor | Stainless steel |
| Peso bruto | 375 kg |
| Peso neto | 278 kg |
| Homologaciones | CE,EAC,UKCA,SEPRO,MOROCCO |
| Referencia del motor | 92689371 |
| Código EAN | 5700393796812 |

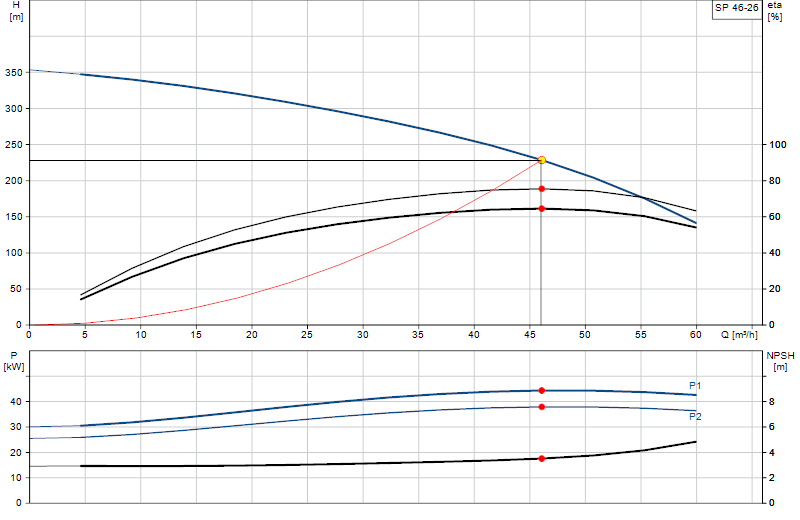

Curva de rendimiento
Pasa el ratón por la curva para leer caudal y altura en cada punto.
