Especificaciones técnicas
| Tipo de bomba | SP14 |
| Número de etapas | 15 |
| Índice de eficiencia mínima (MEI) | 0.50 |
| Fases | 3 |
| Frecuencia (Hz) | 50 Hz |
| Grado de protección | IP68 |
| Clase de aislamiento | F |
| Temp. líquido máx. (°C) | 60 °C |
| Temp. líquido mín. (°C) | -15 °C |
| Presión máx. de servicio | 60 bar |
| Conexión de tubería | TH50A |
| Material del impulsor | Stainless steel |
| Peso bruto | 76.4 kg |
| Peso neto | 42.3 kg |
| Homologaciones | CE,EAC,SEPRO,MOROCCO |
| Referencia del motor | 7C095597 |
| Código EAN | 5712603333441 |

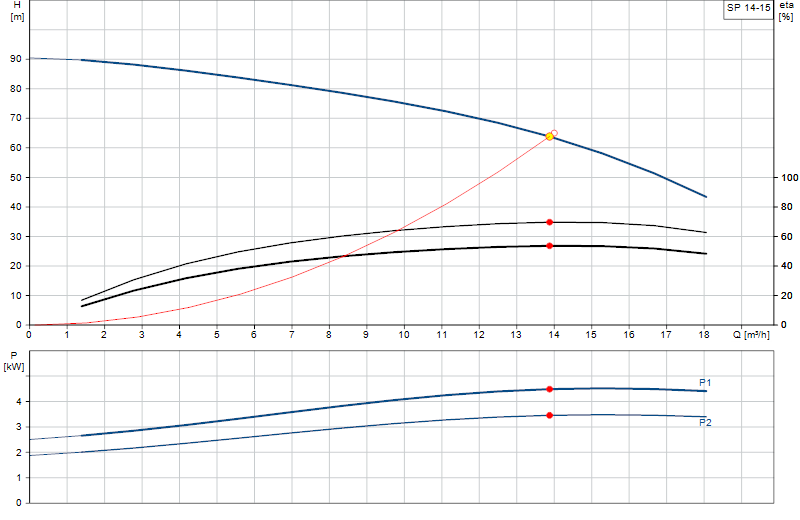

Curva de rendimiento
Pasa el ratón por la curva para leer caudal y altura en cada punto.
