Especificaciones técnicas
| Altura máx. (m) | 52.7 m |
| Fases | 3 |
| Tensión nominal | 380-415/660-690 V |
| Frecuencia (Hz) | 50 Hz |
| Grado de protección | IP68 |
| Clase de aislamiento | H |
| Temp. líquido máx. (°C) | 40 °C |
| Temp. líquido mín. (°C) | 10 °C |
| Temp. ambiente máx. (°C) | 40 °C |
| Presión máx. de servicio | 8 bar |
| Material del cuerpo de bomba | Cast iron |
| Material del impulsor | Cast iron |
| Peso bruto | 311 kg |
| Peso neto | 283 kg |
| Homologaciones | CE,EAC,RCM |
| Código EAN | 5713834008979 |

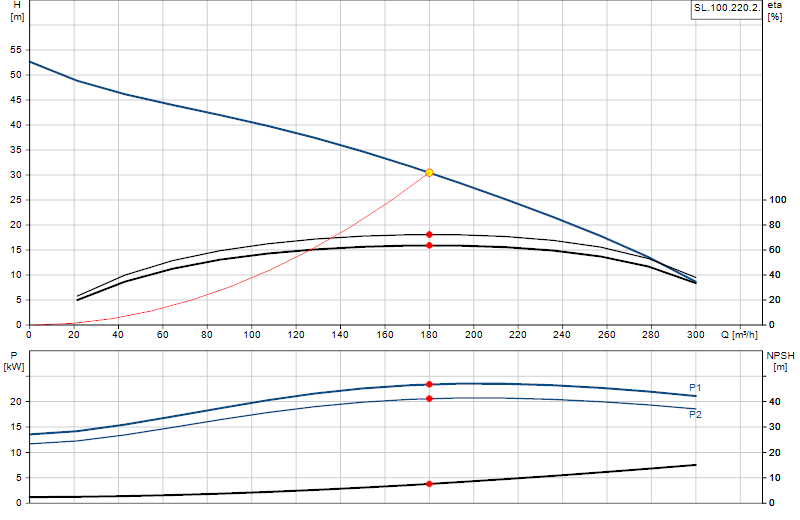

Curva de rendimiento
Pasa el ratón por la curva para leer caudal y altura en cada punto.
Documentos y fichas técnicas
-
SE and SL 9-30 kW, Generation A (Service instruction)
Service · English 17,8 MB -
SE/SL 9-30 kW (Service instruction)
Service · English 7,5 MB -
SE and SL pumps, 9-30 kW (Data booklet)
Data booklets · English 35,0 MB -
SE1, SEV pumps, 1.1 to 11 kW (Data booklet)
Data booklets · English 17,1 MB -
SL1, SLV pumps (1.1 to 11 kW) (Data booklet)
Data booklets · English 8,5 MB -
Correction sheet - SE/SL 9-30 kW IOS
Installation & operating instructions · English 0,2 MB -
SE and SL, 9-30 kW (Safety instructions)
Installation & operating instructions · English 4,3 MB -
SE and SL, 9-30 kW (I & O instructions)
Installation & operating instructions · English 3,9 MB -
SE/SL 9-30 kW Pumps - Vertical Base Stand (Quick guide)
Quick Guides · English 2,7 MB -
Beverage application pumps - Refresh your business with Grundfos (Product brochure)
Product Brochures · English 5,8 MB -
Food application pumps - Nourish your business with Grundfos (Product brochure)
Product Brochures · English 3,4 MB -
Grundfos Industrial Solutions - Marine pumps (Product brochure)
Product Brochures · English 1,4 MB -
GRUNDFOS iSOLUTIONS FOR WATER UTILITY APPLICATIONS (Product brochure)
Product Brochures · English 3,4 MB -
GRUNDFOS PUMPS FOR MINING (Product brochure)
Product Brochures · English 1,4 MB -
GRUNDFOS S-TUBE IMPELLER (Product brochure)
Product Brochures · English 1,0 MB -
Grundfos SE/SL - Submersible and dry-installed wastewater pumps
Product Brochures · English 4,4 MB -
GRUNDFOS SEV & SE1 (Product brochure)
Product Brochures · English 1,4 MB -
GRUNDFOS SEV & SE1 WITH ANALOG SENSORS (Product brochure)
Product Brochures · English 1,3 MB -
GRUNDFOS SL, SE, S PUMP VARIANTS, 1.1 - 520 kW (Product brochure)
Product Brochures · English 0,8 MB -
GRUNDFOS WASTEWATER PRODUCTS (Product brochure)
Product Brochures · English 3,6 MB -
GRUNDFOS WASTEWATER, Accessory catalogue (Product brochure)
Product Brochures · English 5,5 MB -
GRUNDFOS WATER UTILITY (Flood Control) (Product brochure)
Product Brochures · English 6,9 MB -
GRUNDFOS WATER UTILITY (OPTIMISED DESIGN OF STORMWATER TANKS) (Product brochure)
Product Brochures · English 8,2 MB -
Grundfos Whitepaper, wastewater pumps (Product brochure)
Product Brochures · English 0,6 MB -
Harsh environment wastewater pumps
Product Brochures · English 2,5 MB -
Industrial Pump Handbook (Handbook)
Product Brochures · English 22,6 MB -
OPTIMISED WATER SOLUTIONS, India version (Product brochure)
Product Brochures · English 2,5 MB -
Process Driven Engineering (Leaflet)
Product Brochures · English 5,7 MB -
PUMPS FOR BIOETHANOL AND BIODIESEL (Product brochure)
Product Brochures · English 1,1 MB -
SE 9-30 kW, Shaft seal replacement (Service kit instructions)
Service · English 3,5 MB -
SE, SL - 9 to 30 kW (Service Kit Catalogue)
Service · English 2,3 MB -
SE, SL 9-30 kW (Recommended spare parts) (Service Kit Catalogue)
Service · English 0,1 MB -
SL 9-30 kW, Shaft seal replacement (Service kit instructions)
Service · English 10,7 MB
