Especificaciones técnicas
| Caudal nominal (m³/h) | 137 l/s |
| Altura nominal (m) | 14.28 m |
| Fases | 3 |
| Frecuencia (Hz) | 50 Hz |
| Grado de protección | IP68 |
| Clase de aislamiento | H |
| Temp. líquido máx. (°C) | 40 °C |
| Temp. líquido mín. (°C) | 0 °C |
| Temp. ambiente máx. (°C) | 40 °C |
| Presión máx. de servicio | 9 bar |
| Material del cuerpo de bomba | Cast iron |
| Material del impulsor | Cast iron |
| Peso bruto | 1020 kg |
| Peso neto | 925 kg |
| Homologaciones | CE,EAC,RCM,UKCA,MOROCCO |
| Código EAN | 5715467594072 |

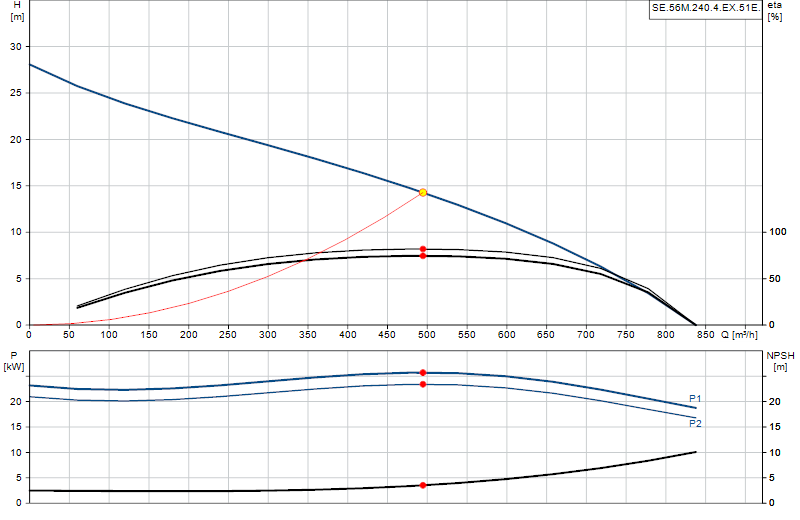

Curva de rendimiento
Documentos y fichas técnicas
-
SE and SL Pumps, Range 56, 25-63 kW, 50 Hz
Data booklets · English 14,1 MB -
Correction sheet - SE/SL 18-63 kW
Installation & operating instructions · English 0,2 MB -
SE and SL pumps, Range 56 (Correction Sheet)
Installation & operating instructions · English 0,1 MB -
SL pumps, range 56, 18-41 kW (I & O instructions)
Installation & operating instructions · English 4,3 MB -
SL pumps, range 56, 18-41 kW (Safety instructions and other important information)
Installation & operating instructions · English 2,8 MB -
SE Frame 56, Horizontal Stand (Quick guide)
Quick Guides · English 2,8 MB -
Grundfos SE/SL - Submersible and dry-installed wastewater pumps
Product Brochures · English 4,4 MB -
GRUNDFOS WASTEWATER, Accessory catalogue (Product brochure)
Product Brochures · English 5,5 MB -
SE and SL pumps, range 56 (Service instructions)
Service · English 11,6 MB -
SE/SL Fr56 18-63kW (Recommended spare parts)
Service · English 2,0 MB -
SE/SL Frame 56 (Recommended spare parts) (Service Kit Catalogue)
Service · English 0,1 MB -
SE/SL Frame 56 (Service Kit Catalogue)
Service · English 1,6 MB -
SE/SL Range 56, Dry running switch replacement (Service kit instructions)
Service · English 4,2 MB
Alternativas equivalentes
Bombas de la misma clase hidráulica que 93087171 (caudal y altura equivalentes), disponibles en el catálogo.
