Especificaciones técnicas
| Altura máx. (m) | 10.9 m |
| Fases | 3 |
| Tensión (V) | 400/690 V |
| Frecuencia (Hz) | 50 Hz |
| Corriente nominal máx. (A) | 102 A |
| Grado de protección | IP68 |
| Clase de aislamiento | F |
| Temp. líquido máx. (°C) | 40 °C |
| Temp. líquido mín. (°C) | 0 °C |
| Temp. ambiente máx. (°C) | 40 °C |
| Conexión de tubería | DIN |
| Presión nominal de conexión | PN 10 |
| Material del cuerpo de bomba | Ductile cast iron |
| Material del impulsor | Ductile iron |
| Peso bruto | 1830 kg |
| Peso neto | 1480 kg |
| Código EAN | 5700310249001 |

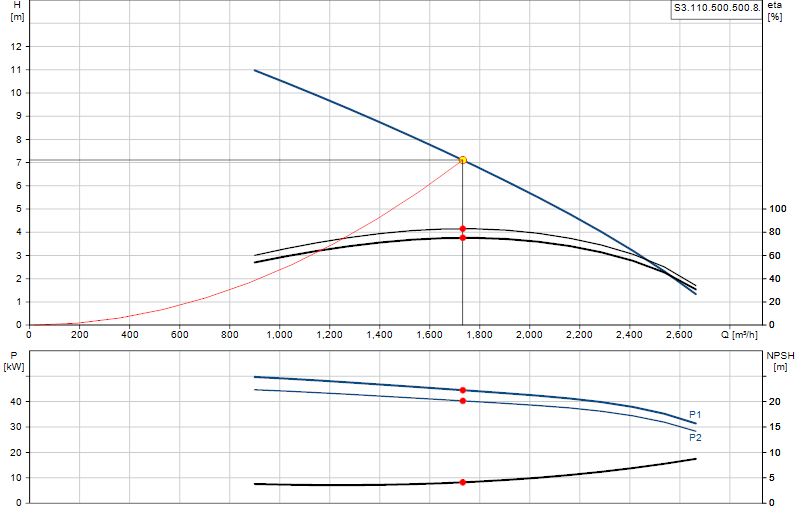

Curva de rendimiento
Pasa el ratón por la curva para leer caudal y altura en cada punto.
