Especificaciones técnicas
| Tipo de bomba | NKE |
| Caudal nominal (m³/h) | 24.8 m³/h |
| Altura nominal (m) | 30.1 m |
| Índice de eficiencia mínima (MEI) | 0.61 |
| Potencia P2 (kW) | 5.5 kW |
| Fases | 3 |
| Tensión (V) | 380-500 V |
| Frecuencia (Hz) | 50 Hz |
| Grado de protección | IP55 |
| Convertidor de frecuencia | Built-in |
| Temp. líquido máx. (°C) | 120 °C |
| Temp. líquido mín. (°C) | 0 °C |
| Temp. ambiente máx. (°C) | 50 °C |
| Presión máx. de servicio | 16 bar |
| Presión nominal de conexión | PN 16 |
| Material del cuerpo de bomba | Cast iron |
| Material del impulsor | Cast iron |
| Cierre mecánico | BAQE |
| Peso bruto | 220 kg |
| Peso neto | 205 kg |
| Referencia del motor | 93137620 |
| Código EAN | 5712606701674 |

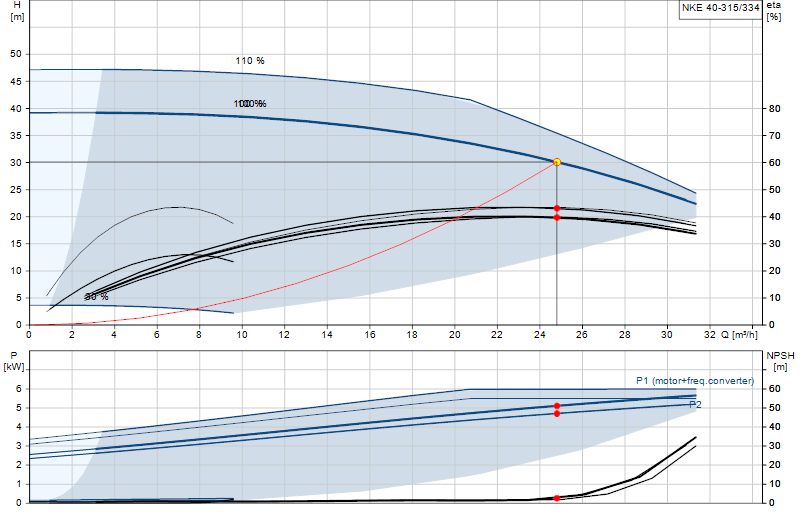

Curva de rendimiento
Pasa el ratón por la curva para leer caudal y altura en cada punto.
