NKE 32-200.1/172 Grundfos

Grundfos

NKE 32-200.1/172

Código: 99097683 EAN: 5712606704453

Solicitar presupuesto

Especificaciones técnicas

Tipo de bomba	NKE
Caudal nominal (m³/h)	18.11 m³/h
Altura nominal (m)	27.72 m
Índice de eficiencia mínima (MEI)	0.52
Potencia P2 (kW)	3 kW
Fases	3
Tensión (V)	380-500 V
Frecuencia (Hz)	50 Hz
Grado de protección	IP55
Convertidor de frecuencia	Built-in
Temp. líquido máx. (°C)	120 °C
Temp. líquido mín. (°C)	0 °C
Temp. ambiente máx. (°C)	50 °C
Presión máx. de servicio	16 bar
Presión nominal de conexión	PN 16
Material del cuerpo de bomba	Cast iron
Material del impulsor	Cast iron
Cierre mecánico	BAQE
Peso bruto	130 kg
Peso neto	117 kg
Referencia del motor	93137588
Código EAN	5712606704453

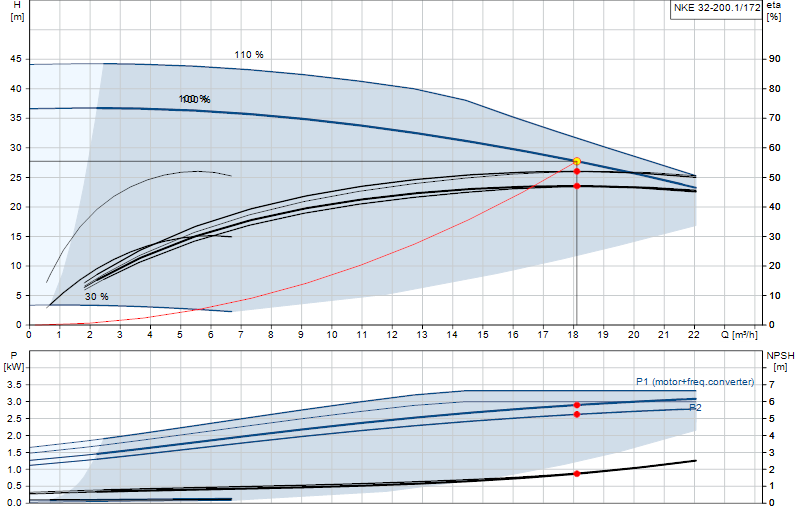

Curva de rendimiento

Curva de rendimiento NKE 32-200.1/172

Pasa el ratón por la curva para leer caudal y altura en cada punto.
