Especificaciones técnicas
| Tipo de bomba | NK |
| Caudal nominal (m³/h) | 235.2 m³/h |
| Altura nominal (m) | 5.985 m |
| Índice de eficiencia mínima (MEI) | 0.70 |
| Potencia P2 (kW) | 5.5 kW |
| Fases | 3 |
| Tensión (V) | 380-400/660-690 V |
| Frecuencia (Hz) | 50 Hz |
| Grado de protección | IP55 (Protect. water jets/dust) |
| Convertidor de frecuencia | None |
| Temp. líquido máx. (°C) | 120 °C |
| Temp. líquido mín. (°C) | -25 °C |
| Temp. ambiente máx. (°C) | 40 °C |
| Presión máx. de servicio | 10 bar |
| Presión nominal de conexión | PN 10 |
| Material del cuerpo de bomba | Cast iron |
| Material del impulsor | Stainless steel |
| Cierre mecánico | BQQE |
| Peso bruto | 339 kg |
| Peso neto | 289 kg |
| Referencia del motor | 92740287 |
| Código EAN | 5715119439805 |

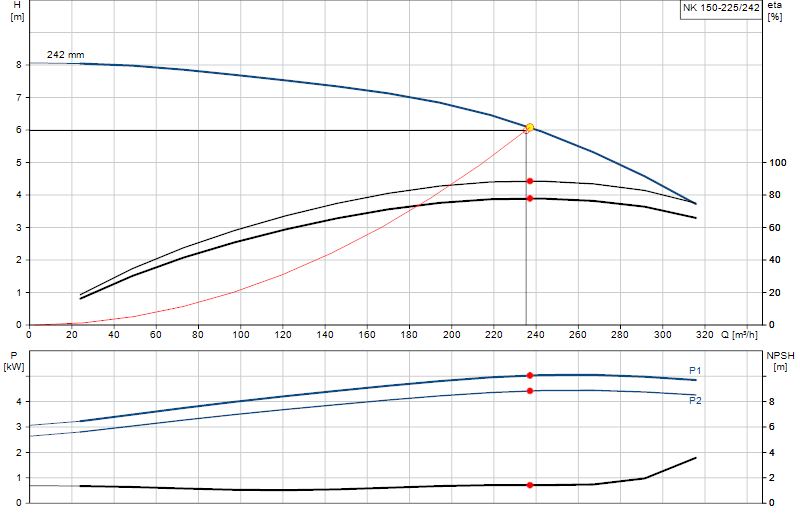

Curva de rendimiento
Pasa el ratón por la curva para leer caudal y altura en cada punto.
