Especificaciones técnicas
| Tipo de bomba | NBG |
| Caudal nominal (m³/h) | 230 m³/h |
| Altura nominal (m) | 136.1 m |
| Índice de eficiencia mínima (MEI) | 0.56 |
| Potencia P2 (kW) | 132 kW |
| Fases | 3 |
| Fases | 3 |
| Tensión (V) | 380-420D/660-725Y V |
| Frecuencia (Hz) | 50 Hz |
| Grado de protección | IP55 |
| Convertidor de frecuencia | None |
| Temp. líquido máx. (°C) | 140 °C |
| Temp. líquido mín. (°C) | 0 °C |
| Temp. ambiente máx. (°C) | 40 °C |
| Presión máx. de servicio | 25 bar |
| Presión nominal de conexión | PN 25 |
| Material del cuerpo de bomba | Stainless steel |
| Material del impulsor | Stainless steel |
| Cierre mecánico | DAQF |
| Peso bruto | 1370 kg |
| Peso neto | 1290 kg |
| Referencia del motor | 92910076 |
| Código EAN | 5712602286090 |

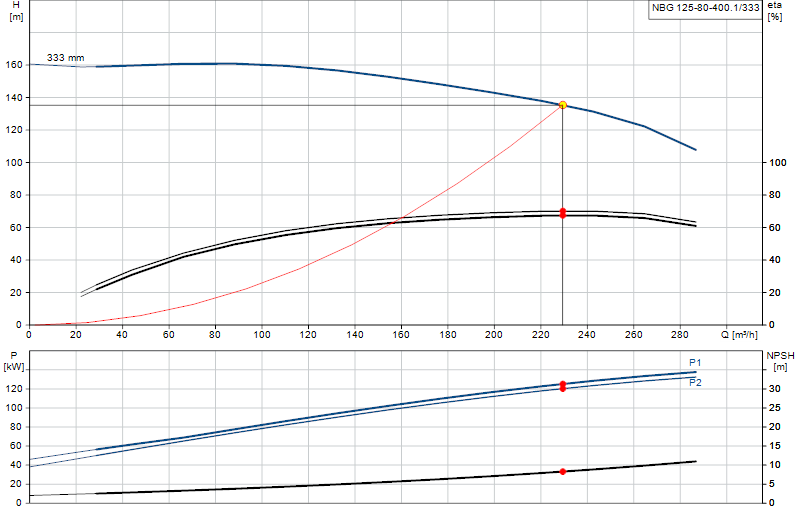

Curva de rendimiento
Pasa el ratón por la curva para leer caudal y altura en cada punto.
