Especificaciones técnicas
| Tipo de bomba | MTS |
| Potencia P2 (kW) | 11 kW |
| Fases | 3 |
| Tensión (V) | 220-240D/380-415Y V |
| Frecuencia (Hz) | 50 Hz |
| Grado de protección | IP55 Dust/Jetting |
| Convertidor de frecuencia | None |
| Temp. líquido máx. (°C) | 80 °C |
| Temp. ambiente máx. (°C) | 60 °C |
| Cierre mecánico | DQ |
| Peso neto | 112 kg |
| Homologaciones | CE,EAC,UKCA, |
| Referencia del motor | 87420001 |
| Código EAN | 5715123530604 |

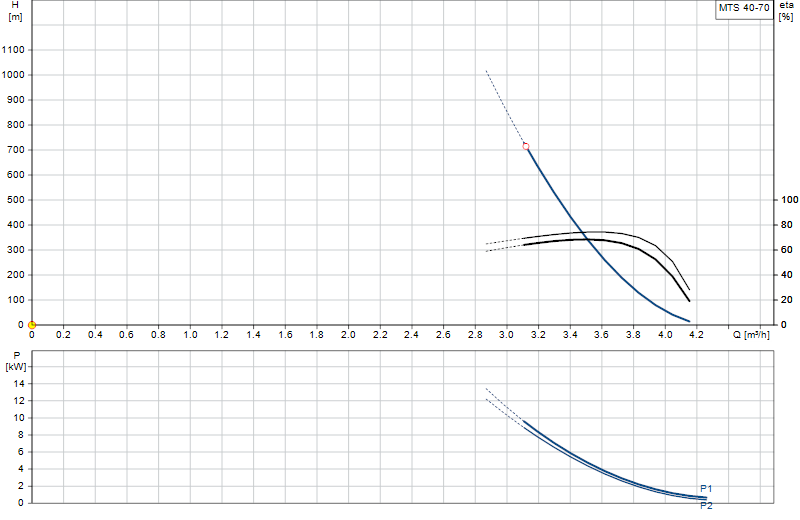

Curva de rendimiento
Pasa el ratón por la curva para leer caudal y altura en cada punto.
