Especificaciones técnicas
| Tipo de bomba | MTR |
| Caudal nominal (m³/h) | 283 l/min |
| Altura nominal (m) | 156.9 m |
| Índice de eficiencia mínima (MEI) | 0.70 |
| Potencia P2 (kW) | 11 kW |
| Fases | 3 |
| Tensión (V) | 220-240D/380-415Y V |
| Frecuencia (Hz) | 50 Hz |
| Grado de protección | IP55 Dust/Jetting |
| Convertidor de frecuencia | None |
| Temp. líquido máx. (°C) | 90 °C |
| Temp. líquido mín. (°C) | -10 °C |
| Temp. ambiente máx. (°C) | 60 °C |
| Presión máx. de servicio | 25 bar |
| Conexión de tubería | G internal thread |
| Material del impulsor | Stainless steel |
| Cierre mecánico | HUUV |
| Altura (mm) | 45 mm |
| Peso bruto | 139 kg |
| Peso neto | 113 kg |
| Homologaciones | CE,EAC,UKCA, |
| Referencia del motor | 85U07524 |
| Código EAN | 5711496361531 |

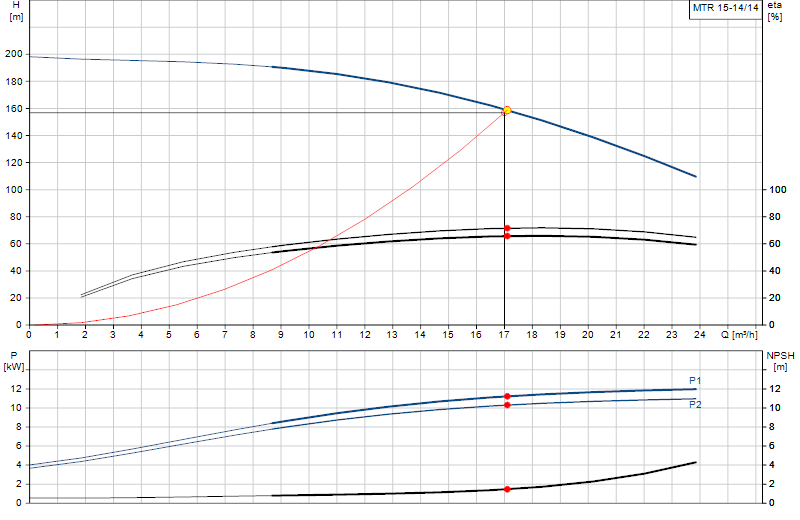

Curva de rendimiento
Pasa el ratón por la curva para leer caudal y altura en cada punto.
