Especificaciones técnicas
| Caudal nominal (m³/h) | 11.64 m³/h |
| Altura nominal (m) | 6.865 m |
| Índice de eficiencia energética (EEI) | 0.19 |
| Fases | 1 |
| Tensión nominal | 230 V |
| Frecuencia (Hz) | 50 / 60 Hz |
| Corriente nominal máx. (A) | 1.64 A |
| Grado de protección | IPX4D |
| Clase de aislamiento | F |
| Temp. líquido máx. (°C) | 110 °C |
| Temp. líquido mín. (°C) | -10 °C |
| Temp. ambiente máx. (°C) | 40 °C |
| Presión máx. de servicio | 10 bar |
| Conexión de tubería | DIN |
| Presión nominal de conexión | PN 6/10 |
| Distancia entre bocas (mm) | 220 mm |
| Material del cuerpo de bomba | Cast iron |
| Material del impulsor | Composite |
| Peso bruto | 36.3 kg |
| Peso neto | 32.4 kg |
| Homologaciones | CE,VDE,EAC,MOROCCO,UKCA,TSE, |
| Código EAN | 5710626495429 |

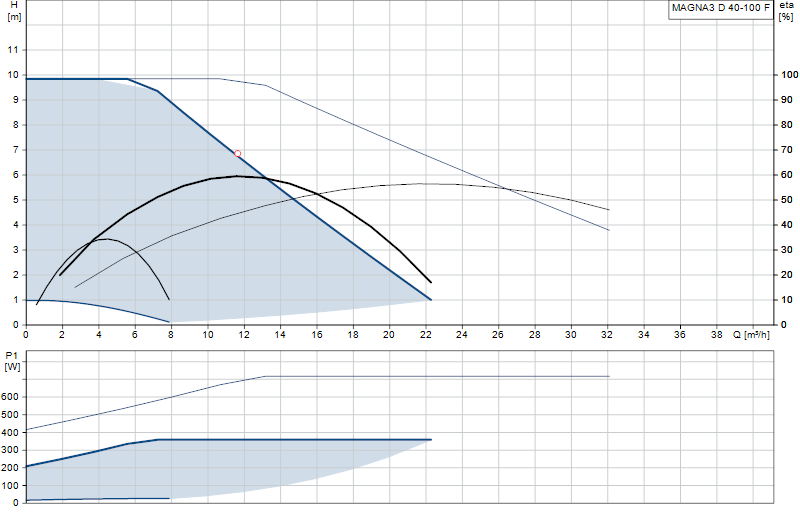

Curva de rendimiento
Pasa el ratón por la curva para leer caudal y altura en cada punto.
Documentos y fichas técnicas
-
MAGNA3 model A, B and C, data booklet
Data booklets · English 38,9 MB -
MAGNA3 Model D, Data booklet
Data booklets · English 66,5 MB -
MAGNA3 Model E, Databooklet
Data booklets · English 43,4 MB -
MAGNA3 model A, B and C, data sheet
Data sheets · English 0,3 MB -
MAGNA3 model D, data sheet
Data sheets · English 0,3 MB -
MAGNA3 Model E (installation and operating instructions)
Installation & operating instructions · English 22,8 MB -
MAGNA3 Model E (Safety instruction)
Installation & operating instructions · English 3,7 MB -
MAGNA3 models A, B, C and D (Safety instructions)
Installation & operating instructions · English 2,5 MB -
MAGNA3, Model A, B, C (Installation and operating instructions)
Installation & operating instructions · English 9,9 MB -
MAGNA3, Model D (I & O instructions)
Installation & operating instructions · English 65,3 MB -
MAGNA3 model D, Terminal connected (Quick Guide)
Quick Guides · English 5,7 MB -
MAGNA3 Model E, Display Menu Overview (GB/DE version) (Quickguide)
Quick Guides · English 5,7 MB -
MAGNA3 Model E, Plug connected (Quickguide)
Quick Guides · English 7,0 MB -
MAGNA3 Model E, Terminal connected (Quickguide)
Quick Guides · English 7,0 MB -
MAGNA3, Plug connected (Quick Guide)
Quick Guides · English 6,0 MB -
GRUNDFOS iSOLUTIONS IN COMMERCIAL BUILDINGS (Product brochure)
Product Brochures · English 9,2 MB -
GRUNDFOS iSOLUTIONS in Commercial Buildings (Product brochures)
Product Brochures · English 9,1 MB -
Grundfos iSOLUTIONS in Commercial Buildings (Product brochures)
Product Brochures · English 6,2 MB -
GRUNDFOS iSOLUTIONS IN COMMERCIAL BUILDINGS, INDIAN VERSION (Product brochure)
Product Brochures · English 9,1 MB -
GRUNDFOS iSOLUTIONS IN COMMERCIAL BUILDINGS, Philippines version (Product brochure)
Product Brochures · English 9,2 MB -
GRUNDFOS iSOLUTIONS IN COMMERCIAL BUILDINGS, Singapore VERSION (Product brochure)
Product Brochures · English 9,2 MB -
MAGNA3, More than a pump (Product brochure)
Product Brochures · English 2,3 MB -
MAGNA3 D - Twin pump (Enviromental Product Declaration)
EPD · English 0,1 MB -
MAGNA, MAGNA1, MAGNA3, MAGNA3 D, MAGNA3 N, International (Service Kit Catalogue)
Service · English 2,4 MB -
MAGNA1, MAGNA3 - Condensation jacket for MAGNA 1 and 3 (Service kit instructions)
Service · English 2,0 MB -
MAGNA1, MAGNA3 Terminal connected versions, Front cover (Service kit instruction)
Service · English 0,4 MB -
MAGNA1, MAGNA3, Terminal connected versions, Pump head, clamp, O-ring, (Service kit instruction)
Service · English 1,6 MB -
MAGNA3 (Plug- and terminal-connected versions / equipotential bonding wire) (Service kit instructions)
Service · English 3,9 MB -
MAGNA3 (Plug-connected versions / Pump head - clamp - O-ring) (Service kit instruction)
Service · English 2,4 MB -
MAGNA3, Cooling sensor with cable (Service kit instructions)
Service · English 3,3 MB -
MAGNA3, Plug- and terminal-connected versions / Sensor with cable (Service kit instructions)
Service · English 4,5 MB -
MAGNA3, Plug-connected versions / Control box - Front cover (Service kit instructions)
Service · English 4,0 MB -
MAGNA3, Plug-connected versions / Front cover and display (Service kit instructions)
Service · English 2,2 MB -
MAGNA3, Sensor cap, Plug and terminal connected versions (Service kit instruction)
Service · English 2,1 MB -
MAGNA3, Terminal-connected versions / Display panel (Service kit instructions)
Service · English 1,9 MB -
MAGNA3, Terminal-connected versions, Control box (Service kit instruction)
Service · English 3,1 MB
