Especificaciones técnicas
| Caudal nominal (m³/h) | 25.76 m³/h |
| Altura nominal (m) | 7.388 m |
| Índice de eficiencia energética (EEI) | 0.17 |
| Fases | 1 |
| Tensión nominal | 230 V |
| Frecuencia (Hz) | 50 / 60 Hz |
| Corriente nominal máx. (A) | 3.45 A |
| Grado de protección | IPX4D |
| Clase de aislamiento | F |
| Temp. líquido máx. (°C) | 110 °C |
| Temp. líquido mín. (°C) | -10 °C |
| Temp. ambiente máx. (°C) | 40 °C |
| Presión máx. de servicio | 10 bar |
| Conexión de tubería | DIN |
| Presión nominal de conexión | PN 6/10 |
| Distancia entre bocas (mm) | 340 mm |
| Material del cuerpo de bomba | Cast iron |
| Material del impulsor | Composite |
| Peso bruto | 23.7 kg |
| Peso neto | 21.5 kg |
| Homologaciones | CE,VDE,EAC,MOROCCO,UKCA,TSE, |
| Código EAN | 5710626493739 |

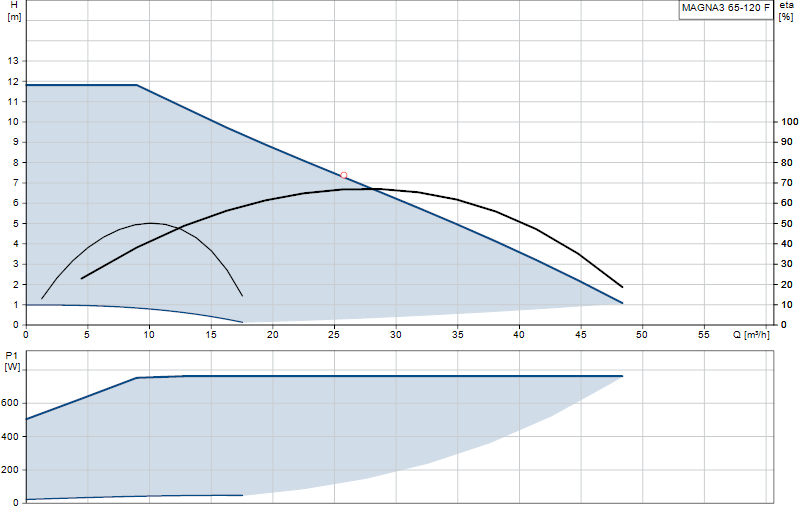

Curva de rendimiento
