Especificaciones técnicas
| Caudal nominal (m³/h) | 917.4 m³/h |
| Altura nominal (m) | 202.1 m |
| Potencia P2 (kW) | 220 kW |
| Fases | 3 |
| Tensión (V) | 380-400/660-690 V |
| Frecuencia (Hz) | 50 Hz |
| Grado de protección | IP55 (Protect. water jets/dust) |
| Temp. líquido máx. (°C) | 100 °C |
| Temp. líquido mín. (°C) | 0 °C |
| Temp. ambiente máx. (°C) | 40 °C |
| Presión máx. de servicio | 16 bar |
| Presión nominal de conexión | PN 16 |
| Material del impulsor | Stainless steel |
| Cierre mecánico | SBQP |
| Peso bruto | 4830 kg |
| Peso neto | 4020 kg |
| Referencia del motor | 92855652 |
| Código EAN | 5715471636744 |

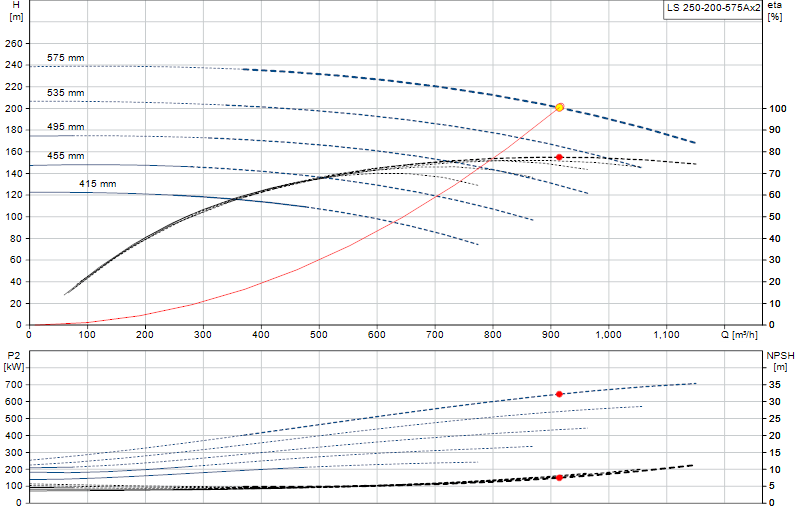

Curva de rendimiento
Pasa el ratón por la curva para leer caudal y altura en cada punto.
