KPL.700.22.8.T.50.15.E.38 Grundfos

Grundfos

KPL.700.22.8.T.50.15.E.38

Código: 99551787 EAN: 5713830915431

Solicitar presupuesto

Especificaciones técnicas

Caudal nominal (m³/h)	570 l/s
Altura nominal (m)	3 m
Altura máx. (m)	3.9 m
Fases	3
Tensión (V)	380 V
Frecuencia (Hz)	50 Hz
Grado de protección	IP68
Clase de aislamiento	F
Temp. ambiente máx. (°C)	40 °C
Presión máx. de servicio	10 bar
Material del cuerpo de bomba	Cast iron
Material del impulsor	Stainless steel
Anchura (mm)	1935 mm
Peso bruto	997 kg
Peso neto	840 kg
Homologaciones	CE,EAC
Código EAN	5713830915431

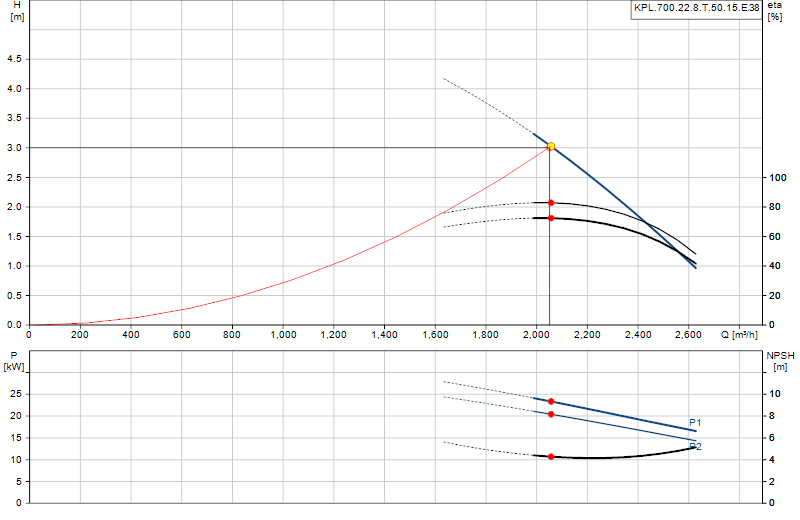

Curva de rendimiento

Curva de rendimiento KPL.700.22.8.T.50.15.E.38

Pasa el ratón por la curva para leer caudal y altura en cada punto.

Documentos y fichas técnicas

KPL, KWM (Service instruction)
Service · English 10,5 MB
Oil service kit (KPL.700-1400, KWM 700-1400) (Service instruction)
Service · English 2,8 MB
GATE PUMP PUMPING STATION (Data booklet)
Data booklets · English 1,5 MB
KPL and KWM Pump Accessories (Data booklet)
Data booklets · English 2,9 MB
KPL and KWM Pumps, Pump Accessories (Data booklet)
Data booklets · English 2,6 MB
KPL, KPG and KWM (11-700 kW) (Data booklet)
Data booklets · English 18,1 MB
Correction sheet - KPL, KPG, KWM
Installation & operating instructions · English 0,2 MB
KPL, KPG and KWM (Safety instructions)
Installation & operating instructions · English 1,5 MB
KPL, KPG and KWM, 11-700 kW, 50 Hz, 11-800 kW, 60 Hz, DIN (Installation and operating instructions)
Installation & operating instructions · English 2,1 MB
Monitoring Unit GU02 (Installation and operating instructions)
Installation & operating instructions · English 1,2 MB
Relay Unit - GU01 (Installation and operating instructions)
Installation & operating instructions · English 0,6 MB
A Wide Range (English) (Product brochure)
Product Brochures · English 46,4 MB
Compact Suction Intake, Perfect solution for water intake (Product brochure)
Product Brochures · English 5,1 MB
GRUNDFOS FMC (FLOOD MITIGATION CONTROLLER) (Product brochure)
Product Brochures · English 0,8 MB
GRUNDFOS iSOLUTIONS FOR WATER UTILITY APPLICATIONS (Product brochure)
Product Brochures · English 3,4 MB
GRUNDFOS WATER UTILITY (Flood Control) (Product brochure)
Product Brochures · English 6,9 MB
GRUNDFOS WATER UTILITY (OPTIMISED DESIGN OF STORMWATER TANKS) (Product brochure)
Product Brochures · English 8,2 MB
Industrial Pump Handbook (Handbook)
Product Brochures · English 22,6 MB
KPL and KWM (11-700 kW) (Product brochure)
Product Brochures · English 4,3 MB
OPTIMISED WATER SOLUTIONS, India version (Product brochure)
Product Brochures · English 2,5 MB
Process Driven Engineering (Leaflet)
Product Brochures · English 5,7 MB
Water Utility range (Product brochure)
Product Brochures · English 3,9 MB
KPL, KWM (Recommended spare parts) (Service Kit Catalogue)
Service · English 0,1 MB
