Especificaciones técnicas
| Caudal nominal (m³/h) | 5844 m³/h |
| Altura nominal (m) | 4 m |
| Altura máx. (m) | 5.5 m |
| Fases | 3 |
| Tensión (V) | 400 V |
| Frecuencia (Hz) | 50 Hz |
| Grado de protección | IP68 |
| Clase de aislamiento | F |
| Temp. ambiente máx. (°C) | 40 °C |
| Presión máx. de servicio | 10 bar |
| Conexión de tubería | DIN |
| Material del cuerpo de bomba | Cast iron |
| Material del impulsor | Stainless steel |
| Anchura (mm) | 2043 mm |
| Peso bruto | 3390 kg |
| Peso neto | 2930 kg |
| Homologaciones | CE,EAC |
| Código EAN | 5715116006031 |

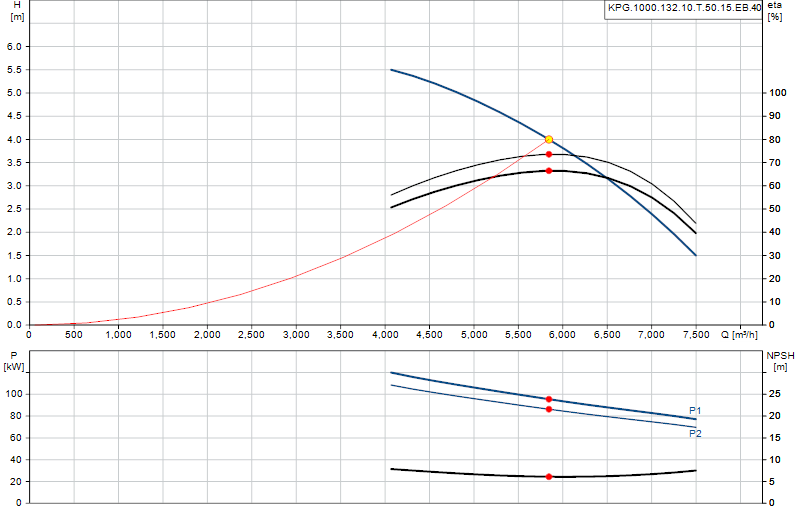

Curva de rendimiento
Pasa el ratón por la curva para leer caudal y altura en cada punto.
