Especificaciones técnicas
| Caudal nominal (m³/h) | 9 m³/h |
| Altura nominal (m) | 32.8 m |
| Fases | 3 |
| Tensión nominal | 380-415 V |
| Frecuencia (Hz) | 50 Hz |
| Grado de protección | IP54 |
| Temp. líquido máx. (°C) | 60 °C |
| Temp. líquido mín. (°C) | 5 °C |
| Peso bruto | 277 kg |
| Peso neto | 246 kg |
| Código EAN | 5700314237035 |

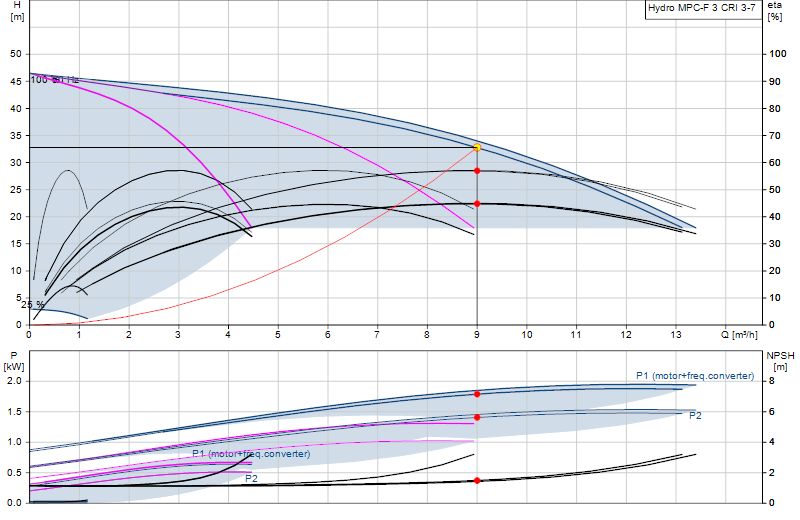

Curva de rendimiento
Pasa el ratón por la curva para leer caudal y altura en cada punto.
