Especificaciones técnicas
| Caudal nominal (m³/h) | 34.3 l/s |
| Altura nominal (m) | 38.6 m |
| Altura máx. (m) | 56 m |
| Fases | 3 |
| Tensión nominal | 380-415 V |
| Frecuencia (Hz) | 50 Hz |
| Grado de protección | IP68 |
| Clase de aislamiento | F |
| Temp. líquido máx. (°C) | 40 °C |
| Temp. líquido mín. (°C) | 0 °C |
| Temp. ambiente máx. (°C) | 40 °C |
| Presión máx. de servicio | 5.7 bar |
| Material del cuerpo de bomba | Cast iron |
| Material del impulsor | Ductile cast iron |
| Peso bruto | 392 kg |
| Peso neto | 310 kg |
| Código EAN | 5700312719809 |

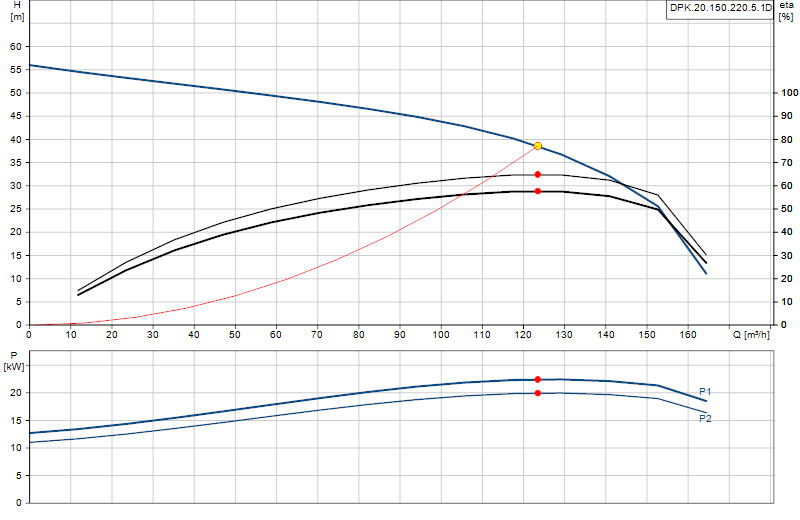

Curva de rendimiento
Pasa el ratón por la curva para leer caudal y altura en cada punto.
