Especificaciones técnicas
| Tipo de bomba | CRNE |
| Caudal nominal (m³/h) | 8.25 m³/h |
| Altura nominal (m) | 144.7 m |
| Altura máx. (m) | 188.9 m |
| Número de etapas | 15 |
| Índice de eficiencia mínima (MEI) | 0.57 |
| Potencia P2 (kW) | 5.5 kW |
| Fases | 3 |
| Tensión (V) | 380-500 V |
| Frecuencia (Hz) | 50 / 60 Hz |
| Grado de protección | IP55 |
| Convertidor de frecuencia | Built-in |
| Temp. líquido máx. (°C) | 90 °C |
| Temp. líquido mín. (°C) | -20 °C |
| Temp. ambiente máx. (°C) | 50 °C |
| Presión máx. de servicio | 25 bar |
| Conexión de tubería | DIN / ANSI / JIS |
| Presión nominal de conexión | PN 25 |
| Material del impulsor | Stainless steel |
| Cierre mecánico | HQQV |
| Longitud (mm) | 250 mm |
| Altura (mm) | 75 mm |
| Anchura (mm) | 210 mm |
| Peso bruto | 89.4 kg |
| Peso neto | 62.3 kg |
| Homologaciones | CE,UKCA,SEPRO,RCM, |
| Referencia del motor | 92984047 |
| Código EAN | 5715468476698 |

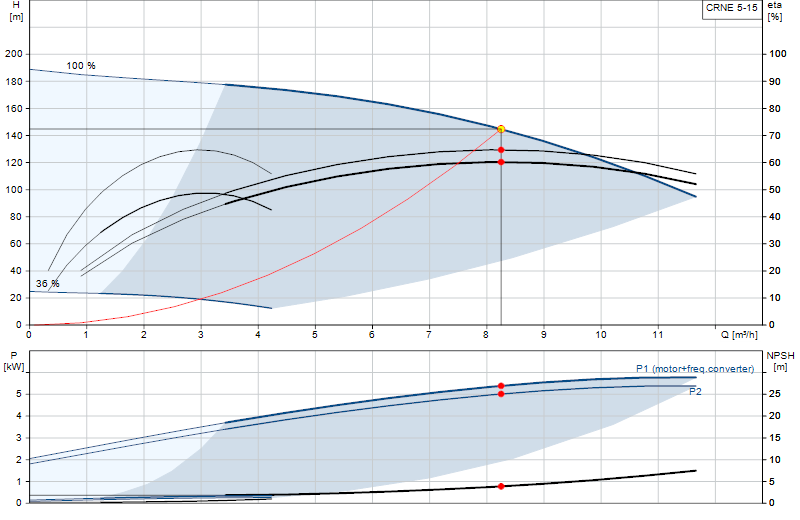

Curva de rendimiento
Pasa el ratón por la curva para leer caudal y altura en cada punto.
