Especificaciones técnicas
| Tipo de bomba | CRI |
| Caudal nominal (m³/h) | 17 m³/h |
| Altura nominal (m) | 55.4 m |
| Altura máx. (m) | 70.6 m |
| Número de etapas | 5 |
| Índice de eficiencia mínima (MEI) | 0.70 |
| Potencia P2 (kW) | 4 kW |
| Fases | 3 |
| Tensión (V) | 220-230D/380-400Y V |
| Frecuencia (Hz) | 50 Hz |
| Grado de protección | IP55 Dust/Jetting |
| Convertidor de frecuencia | None |
| Temp. líquido máx. (°C) | 120 °C |
| Temp. líquido mín. (°C) | -20 °C |
| Temp. ambiente máx. (°C) | 60 °C |
| Presión máx. de servicio | 16 bar |
| Conexión de tubería | FlexiClamp |
| Presión nominal de conexión | PN 25 |
| Material del impulsor | Stainless steel |
| Cierre mecánico | HQQE |
| Longitud (mm) | 202 mm |
| Altura (mm) | 90 mm |
| Anchura (mm) | 248 mm |
| Peso bruto | 72 kg |
| Peso neto | 68 kg |
| Homologaciones | CE,EAC,UKCA,SEPRO,RCM, |
| Referencia del motor | 93305193 |
| Código EAN | 5715471866073 |

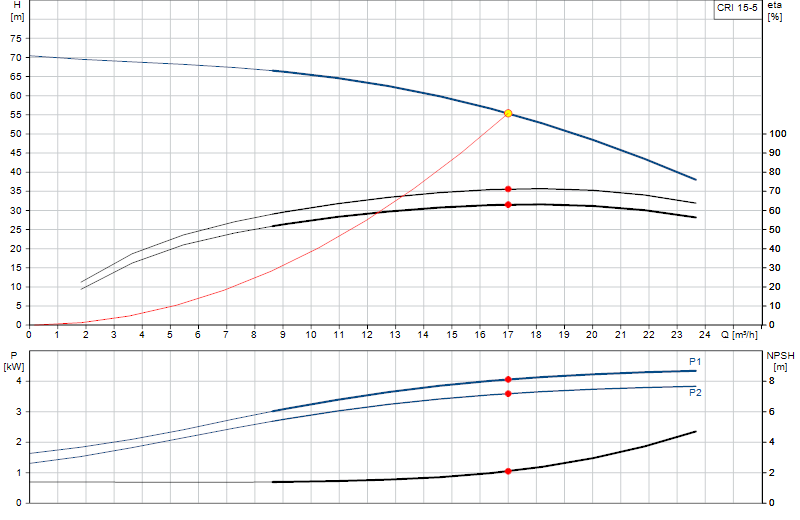

Curva de rendimiento
Pasa el ratón por la curva para leer caudal y altura en cada punto.
