Especificaciones técnicas
| Tipo de bomba | CR |
| Caudal nominal (m³/h) | 5.8 m³/h |
| Altura nominal (m) | 102.9 m |
| Altura máx. (m) | 136.1 m |
| Número de etapas | 20 |
| Índice de eficiencia mínima (MEI) | 0.57 |
| Potencia P2 (kW) | 3 kW |
| Fases | 3 |
| Tensión (V) | 220-230D/380-400Y V |
| Frecuencia (Hz) | 50 Hz |
| Grado de protección | IP55 Dust/Jetting |
| Convertidor de frecuencia | None |
| Temp. líquido máx. (°C) | 120 °C |
| Temp. líquido mín. (°C) | -20 °C |
| Temp. ambiente máx. (°C) | 60 °C |
| Presión máx. de servicio | 16 bar |
| Conexión de tubería | Oval / Rp |
| Presión nominal de conexión | PN 16 |
| Material del impulsor | Stainless steel |
| Cierre mecánico | HQQE |
| Longitud (mm) | 160 mm |
| Altura (mm) | 50 mm |
| Anchura (mm) | 220 mm |
| Peso bruto | 59.4 kg |
| Peso neto | 54.1 kg |
| Homologaciones | CE,EAC,UKCA,SEPRO,RCM, |
| Referencia del motor | 93084742 |
| Código EAN | 5715471910028 |

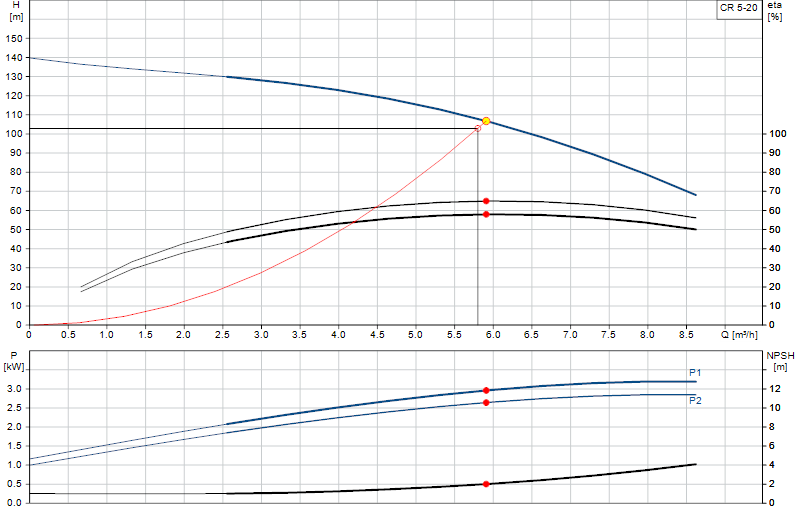

Curva de rendimiento
Pasa el ratón por la curva para leer caudal y altura en cada punto.
