Especificaciones técnicas
| Caudal nominal (m³/h) | 3.1 m³/h |
| Altura nominal (m) | 27.7 m |
| Fases | 1 |
| Tensión nominal | 220-230 V |
| Frecuencia (Hz) | 50 Hz |
| Grado de protección | IP55 |
| Clase de aislamiento | F |
| Temp. líquido máx. (°C) | 40 °C |
| Temp. líquido mín. (°C) | 0 °C |
| Temp. ambiente máx. (°C) | 50 °C |
| Presión máx. de servicio | 10 bar |
| Presión nominal de conexión | PN 10 |
| Material del cuerpo de bomba | Cast iron |
| Material del impulsor | Stainless steel |
| Cierre mecánico | AVBE |
| Longitud (mm) | 323.5 mm |
| Altura (mm) | 75 mm |
| Anchura (mm) | 100 mm |
| Peso bruto | 15.1 kg |
| Peso neto | 13.6 kg |
| Homologaciones | CE,RCM |
| Código EAN | 5715471048103 |

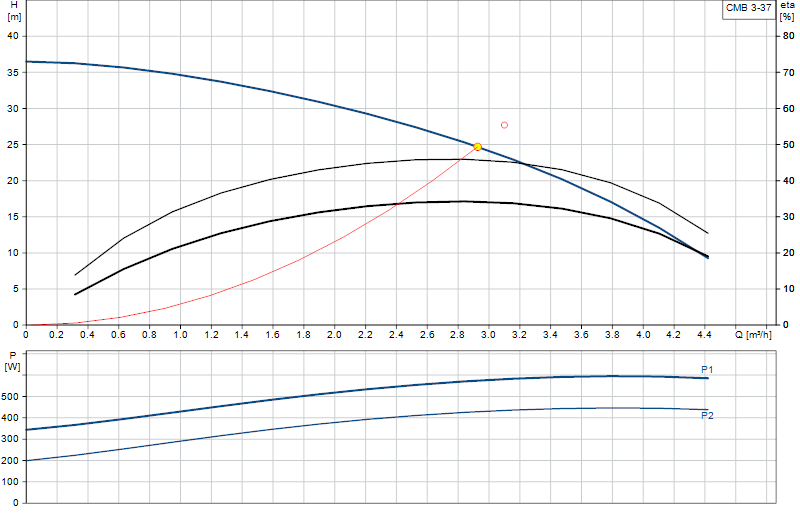

Curva de rendimiento
Pasa el ratón por la curva para leer caudal y altura en cada punto.
Documentos y fichas técnicas
-
CMB, CMBE and CMBE TWIN (Data booklet)
Data booklets · English 7,7 MB -
CM Booster PM1 (Installation and operating instructions)
Installation & operating instructions · English 0,2 MB -
CMB PM, CMB PT, CMBE (Installation and operating instructions)
Installation & operating instructions · English 2,0 MB -
CMB, CMB-SP Booster PM1, PM2 (Installation and operating instructions)
Installation & operating instructions · English 0,7 MB -
CMB, CMB-SP, PM START, PM PLUS (Installation and operating instructions)
Installation & operating instructions · English 2,3 MB -
CMB, CMB-SP, PM START, PM PLUS (Safety instructions and other important information)
Installation & operating instructions · English 1,0 MB -
Moroccan declaration of conformity, CMB PM1, CMB SP PM1 (Declaration)
Installation & operating instructions · English 0,2 MB -
Moroccan declaration of conformity, CMB PM2, CMB SP PM2 (Declaration)
Installation & operating instructions · English 0,2 MB -
CM BOOSTER PM1 (Quick Guide)
Quick Guides · English 2,4 MB -
CM BOOSTER PM2 (Quick Guide)
Quick Guides · English 9,2 MB -
A Wide Range (English) (Product brochure)
Product Brochures · English 46,4 MB -
CMB and CMBE selection guide
Product Brochures · English 0,6 MB -
CMBE BOOSTER (Product brochure)
Product Brochures · English 1,0 MB -
DCW Quick Selection guide - full with UPA (Product brochure)
Product Brochures · English 1,6 MB -
DCW Quick Selection guide - full without UPA (Product brochure)
Product Brochures · English 1,6 MB -
DOMESTIC COLD WATER FOR PRESSURE BOOSTING (Product brochure)
Product Brochures · English 0,8 MB -
DOMESTIC WATER CATALOGUE - 2020, India version (Product brochure)
Product Brochures · English 18,2 MB -
Mechanical shaft seals for pumps (Handbook)
Product Brochures · English 6,9 MB -
CM Booster (CMBE, CM PT, CM PS) (Service kit instructions)
Service · English 0,6 MB
Alternativas equivalentes
Bombas de la misma clase hidráulica que 93332868 (caudal y altura equivalentes), disponibles en el catálogo.
