Technische Daten
| Pumpentyp | TPE3 |
| Nennförderstrom (m³/h) | 24.9 m³/h |
| Nennförderhöhe (m) | 5.7 m |
| Mindesteffizienzindex (MEI) | 0.70 |
| Leistung P2 (kW) | 0.55 kW |
| Phasen | 1 |
| Spannung (V) | 200-240 V |
| Frequenz (Hz) | 50 / 60 Hz |
| Schutzart | IP55 |
| Frequenzumrichter | Built-in |
| Max. Medientemp. (°C) | 120 °C |
| Min. Medientemp. (°C) | 0 °C |
| Max. Umgebungstemp. (°C) | 50 °C |
| Max. Betriebsdruck | 10 bar |
| Rohranschluss | DIN |
| Anschluss-Nenndruck | PN 6/10 |
| Einbaulänge (mm) | 340 mm |
| Werkstoff Pumpengehäuse | Cast iron |
| Laufradwerkstoff | Composite |
| Wellendichtung | BQBE |
| Länge (mm) | 340 mm |
| Höhe (mm) | 74 mm |
| Bruttogewicht | 36.2 kg |
| Nettogewicht | 27.5 kg |
| Motornummer | 99137985 |
| EAN-Code | 5713826362454 |

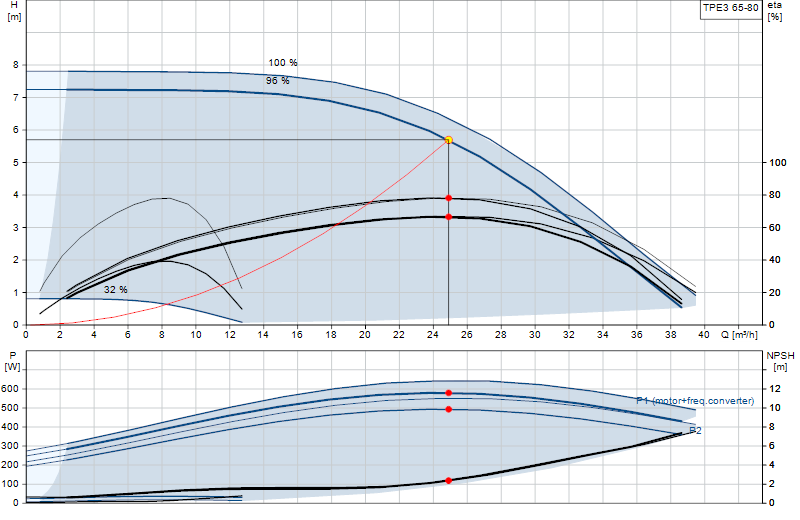

Kennlinie
Fahren Sie über die Kurve, um Förderstrom und Förderhöhe an jedem Punkt abzulesen.
