Technische Daten
| Pumpentyp | TPE2 |
| Nennförderstrom (m³/h) | 53.28 m³/h |
| Nennförderhöhe (m) | 29.9 m |
| Mindesteffizienzindex (MEI) | 0.7 |
| Leistung P2 (kW) | 5.5 kW |
| Phasen | 3 |
| Spannung (V) | 380-500 V |
| Frequenz (Hz) | 50 / 60 Hz |
| Schutzart | IP55 |
| Frequenzumrichter | Built-in |
| Max. Medientemp. (°C) | 120 °C |
| Min. Medientemp. (°C) | -25 °C |
| Max. Umgebungstemp. (°C) | 50 °C |
| Max. Betriebsdruck | 16 bar |
| Rohranschluss | DIN |
| Anschluss-Nenndruck | PN 16 |
| Einbaulänge (mm) | 340 mm |
| Werkstoff Pumpengehäuse | Cast iron |
| Laufradwerkstoff | Composite |
| Wellendichtung | BQQE |
| Länge (mm) | 340 mm |
| Höhe (mm) | 105 mm |
| Bruttogewicht | 169 kg |
| Nettogewicht | 134 kg |
| Motornummer | 93115473 |
| EAN-Code | 5715471146441 |

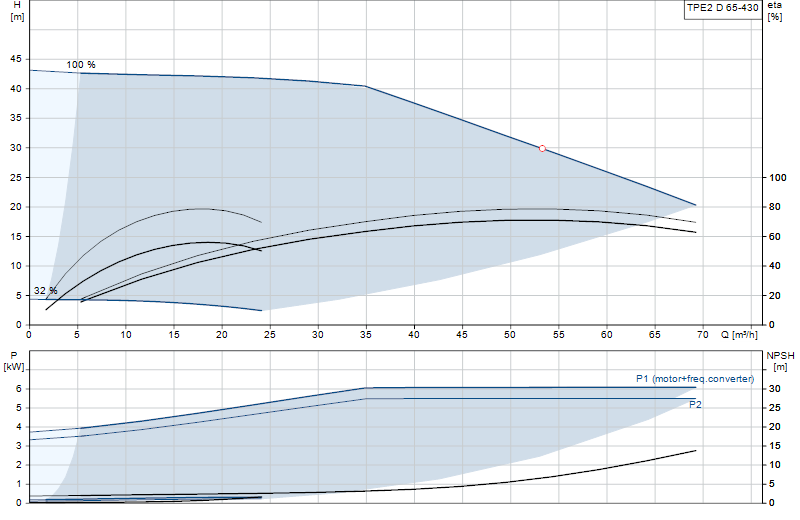

Kennlinie
Fahren Sie über die Kurve, um Förderstrom und Förderhöhe an jedem Punkt abzulesen.
