Technische Daten
| Pumpentyp | TPE2 |
| Nennförderstrom (m³/h) | 75.92 m³/h |
| Nennförderhöhe (m) | 8.26 m |
| Mindesteffizienzindex (MEI) | 0.7 |
| Leistung P2 (kW) | 2.2 kW |
| Phasen | 3 |
| Spannung (V) | 380-500 V |
| Frequenz (Hz) | 50 / 60 Hz |
| Schutzart | IP55 |
| Frequenzumrichter | Built-in |
| Max. Medientemp. (°C) | 120 °C |
| Min. Medientemp. (°C) | -25 °C |
| Max. Umgebungstemp. (°C) | 50 °C |
| Max. Betriebsdruck | 16 bar |
| Rohranschluss | DIN |
| Anschluss-Nenndruck | PN 16 |
| Einbaulänge (mm) | 450 mm |
| Werkstoff Pumpengehäuse | Cast iron |
| Laufradwerkstoff | Cast iron |
| Wellendichtung | BQQE |
| Länge (mm) | 450 mm |
| Höhe (mm) | 117 mm |
| Bruttogewicht | 190 kg |
| Nettogewicht | 167 kg |
| Motornummer | 93108475 |
| EAN-Code | 5715471147783 |

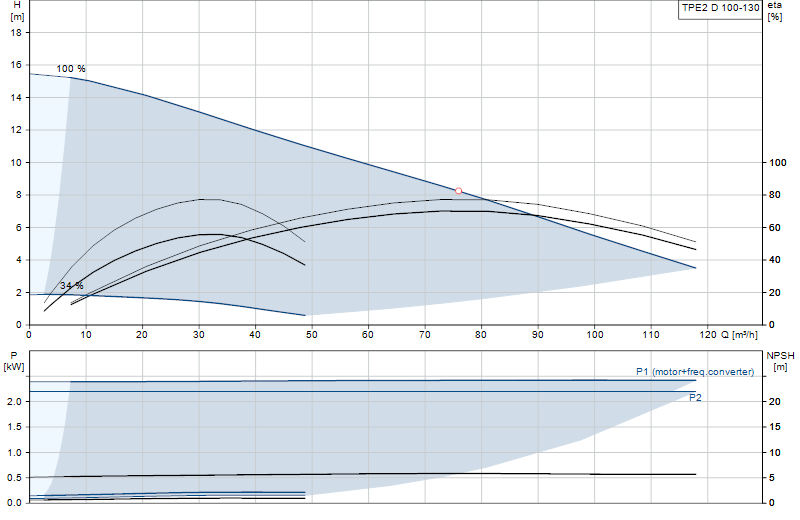

Kennlinie
Fahren Sie über die Kurve, um Förderstrom und Förderhöhe an jedem Punkt abzulesen.
