Technische Daten
| Pumpentyp | TP |
| Nennförderstrom (m³/h) | 46.66 m³/h |
| Nennförderhöhe (m) | 8.15 m |
| Mindesteffizienzindex (MEI) | 0.68 |
| Leistung P2 (kW) | 1.5 kW |
| Phasen | 3 |
| Spannung (V) | 200-220D/346-380Y V |
| Frequenz (Hz) | 50 Hz |
| Schutzart | IP55 Dust/Jetting |
| Frequenzumrichter | None |
| Max. Medientemp. (°C) | 120 °C |
| Min. Medientemp. (°C) | 0 °C |
| Max. Umgebungstemp. (°C) | 60 °C |
| Max. Betriebsdruck | 14 bar |
| Rohranschluss | JIS |
| Anschluss-Nenndruck | 10K |
| Einbaulänge (mm) | 440 mm |
| Werkstoff Pumpengehäuse | Cast iron |
| Laufradwerkstoff | Cast iron |
| Wellendichtung | BAQE |
| Länge (mm) | 440 mm |
| Höhe (mm) | 115 mm |
| Bruttogewicht | 88 kg |
| Nettogewicht | 70.1 kg |
| Motornummer | 98604324 |
| EAN-Code | 5700830628447 |

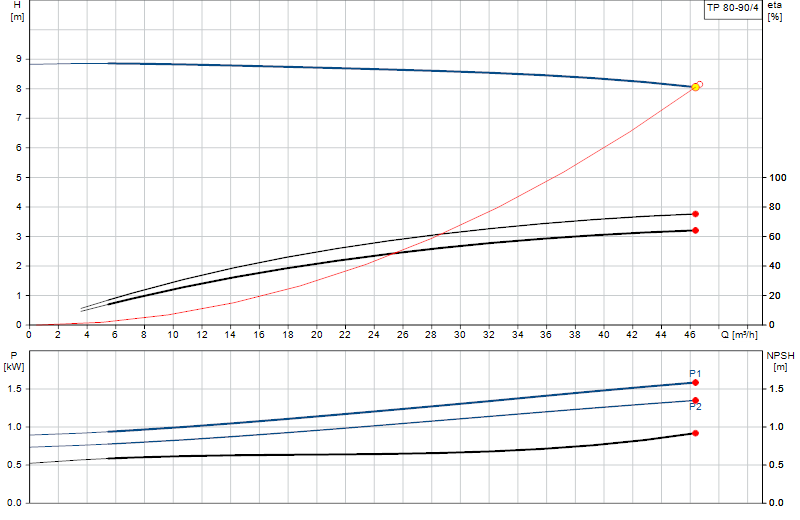

Kennlinie
Fahren Sie über die Kurve, um Förderstrom und Förderhöhe an jedem Punkt abzulesen.
