Technische Daten
| Pumpentyp | TP |
| Nennförderstrom (m³/h) | 67.9 m³/h |
| Nennförderhöhe (m) | 14.4 m |
| Mindesteffizienzindex (MEI) | 0.70 |
| Leistung P2 (kW) | 4 kW |
| Phasen | 3 |
| Spannung (V) | 200-220D/346-380Y V |
| Frequenz (Hz) | 50 Hz |
| Schutzart | IP55 Dust/Jetting |
| Frequenzumrichter | None |
| Max. Medientemp. (°C) | 120 °C |
| Min. Medientemp. (°C) | 0 °C |
| Max. Umgebungstemp. (°C) | 60 °C |
| Max. Betriebsdruck | 14 bar |
| Rohranschluss | JIS |
| Anschluss-Nenndruck | 10K |
| Einbaulänge (mm) | 500 mm |
| Werkstoff Pumpengehäuse | Cast iron |
| Laufradwerkstoff | Cast iron |
| Wellendichtung | BAQE |
| Länge (mm) | 500 mm |
| Höhe (mm) | 115 mm |
| Bruttogewicht | 118 kg |
| Nettogewicht | 100 kg |
| Motornummer | 98718338 |
| EAN-Code | 5700830628478 |

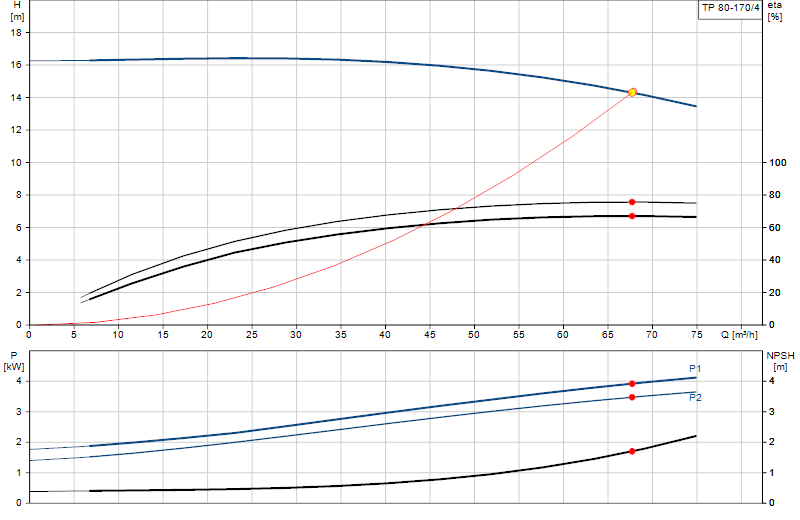

Kennlinie
Fahren Sie über die Kurve, um Förderstrom und Förderhöhe an jedem Punkt abzulesen.
