Technische Daten
| Pumpentyp | TP |
| Nennförderstrom (m³/h) | 23.02 m³/h |
| Nennförderhöhe (m) | 14.92 m |
| Mindesteffizienzindex (MEI) | 0.7 |
| Leistung P2 (kW) | 1.5 kW |
| Phasen | 3 |
| Spannung (V) | 220-240D/380-420Y V |
| Frequenz (Hz) | 50 Hz |
| Schutzart | IP55 (Protect. water jets/dust) |
| Frequenzumrichter | None |
| Max. Medientemp. (°C) | 120 °C |
| Min. Medientemp. (°C) | -25 °C |
| Max. Umgebungstemp. (°C) | 60 °C |
| Max. Betriebsdruck | 16 bar |
| Rohranschluss | DIN |
| Anschluss-Nenndruck | PN 16 |
| Einbaulänge (mm) | 340 mm |
| Werkstoff Pumpengehäuse | Cast iron |
| Laufradwerkstoff | Stainless steel |
| Wellendichtung | BQQE |
| Länge (mm) | 340 mm |
| Höhe (mm) | 115 mm |
| Bruttogewicht | 66 kg |
| Nettogewicht | 51.5 kg |
| Motornummer | 92652055 |
| EAN-Code | 5715470271397 |

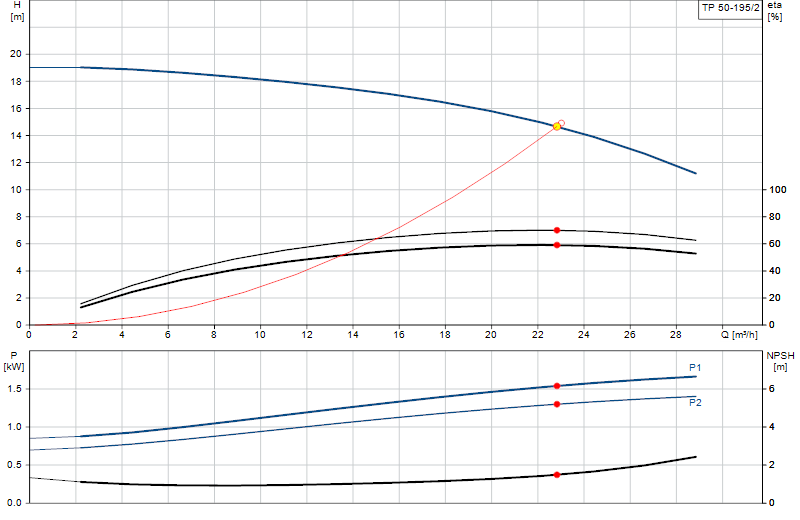

Kennlinie
Fahren Sie über die Kurve, um Förderstrom und Förderhöhe an jedem Punkt abzulesen.
