Technische Daten
| Pumpentyp | TP |
| Nennförderstrom (m³/h) | 1282 m³/h |
| Nennförderhöhe (m) | 43.75 m |
| Mindesteffizienzindex (MEI) | 0.70 |
| Leistung P2 (kW) | 200 kW |
| Phasen | 3 |
| Spannung (V) | 380-415D/660Y V |
| Frequenz (Hz) | 50 Hz |
| Schutzart | IP55 |
| Frequenzumrichter | None |
| Max. Medientemp. (°C) | 120 °C |
| Min. Medientemp. (°C) | -25 °C |
| Max. Umgebungstemp. (°C) | 55 °C |
| Max. Betriebsdruck | 16 bar |
| Rohranschluss | DIN |
| Anschluss-Nenndruck | PN 16 |
| Einbaulänge (mm) | 1400 mm |
| Werkstoff Pumpengehäuse | Ductile iron |
| Laufradwerkstoff | Cast iron |
| Wellendichtung | BQQE |
| Länge (mm) | 1400 mm |
| Höhe (mm) | 385 mm |
| Bruttogewicht | 2280 kg |
| Nettogewicht | 2140 kg |
| Motornummer | 93123989 |
| EAN-Code | 5715472515895 |

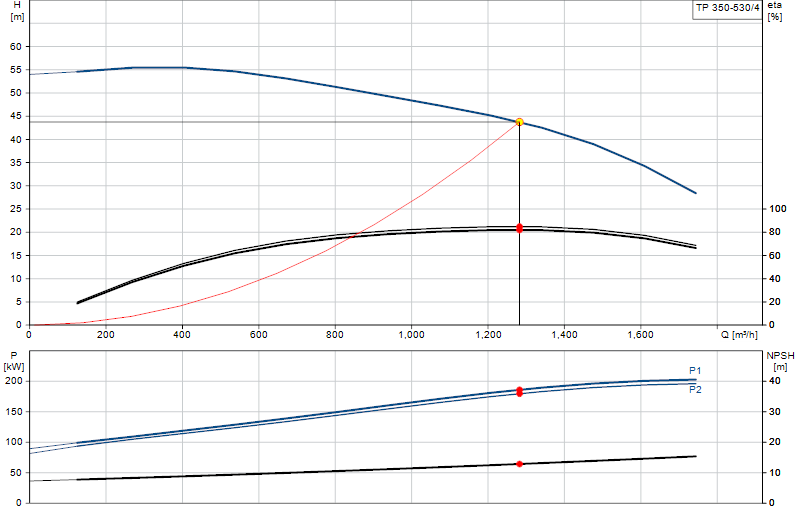

Kennlinie
Fahren Sie über die Kurve, um Förderstrom und Förderhöhe an jedem Punkt abzulesen.
