Technische Daten
| Pumpentyp | TP |
| Nennförderstrom (m³/h) | 7.88 m³/h |
| Nennförderhöhe (m) | 7.93 m |
| Mindesteffizienzindex (MEI) | 0.70 |
| Leistung P2 (kW) | 0.37 kW |
| Phasen | 3 |
| Spannung (V) | 220-230D/380-400Y V |
| Frequenz (Hz) | 50 Hz |
| Schutzart | IP55 Dust/Jetting |
| Frequenzumrichter | None |
| Max. Medientemp. (°C) | 120 °C |
| Min. Medientemp. (°C) | -25 °C |
| Max. Umgebungstemp. (°C) | 60 °C |
| Max. Betriebsdruck | 10 bar |
| Rohranschluss | G |
| Anschlussgröße | 1 1/2 inch |
| Anschluss-Nenndruck | PN 10 |
| Einbaulänge (mm) | 180 mm |
| Werkstoff Pumpengehäuse | Cast iron |
| Laufradwerkstoff | Composite |
| Wellendichtung | BQQE |
| Länge (mm) | 180 mm |
| Höhe (mm) | 48 mm |
| Bruttogewicht | 12.1 kg |
| Nettogewicht | 10.1 kg |
| Motornummer | 93296451 |
| EAN-Code | 5715472550193 |

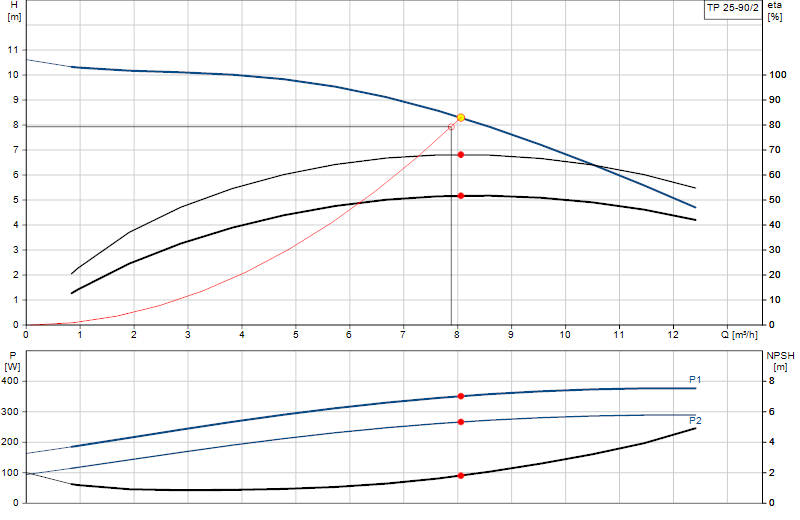

Kennlinie
Fahren Sie über die Kurve, um Förderstrom und Förderhöhe an jedem Punkt abzulesen.
