Technische Daten
| Pumpentyp | TP |
| Nennförderstrom (m³/h) | 3.72 m³/h |
| Nennförderhöhe (m) | 2.7 m |
| Leistung P2 (kW) | 0.12 kW |
| Phasen | 3 |
| Spannung (V) | 220-240D/380-415Y V |
| Frequenz (Hz) | 50 Hz |
| Schutzart | IP55 |
| Frequenzumrichter | None |
| Max. Medientemp. (°C) | 120 °C |
| Min. Medientemp. (°C) | 0 °C |
| Max. Umgebungstemp. (°C) | 40 °C |
| Max. Betriebsdruck | 10 bar |
| Rohranschluss | G |
| Anschlussgröße | 1 1/2 inch |
| Anschluss-Nenndruck | PN 10 |
| Einbaulänge (mm) | 180 mm |
| Werkstoff Pumpengehäuse | Cast iron |
| Laufradwerkstoff | Composite |
| Wellendichtung | BQBE |
| Länge (mm) | 180 mm |
| Höhe (mm) | 46 mm |
| Bruttogewicht | 9.6 kg |
| Nettogewicht | 8.6 kg |
| Motornummer | 81602312 |
| EAN-Code | 5712608951954 |

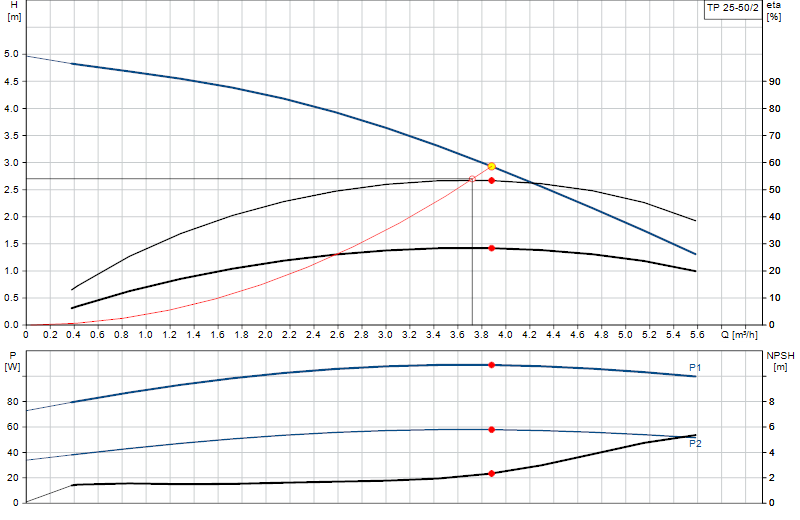

Kennlinie
Fahren Sie über die Kurve, um Förderstrom und Förderhöhe an jedem Punkt abzulesen.
