Technische Daten
| Pumpentyp | TP |
| Nennförderstrom (m³/h) | 570.8 m³/h |
| Nennförderhöhe (m) | 52.12 m |
| Mindesteffizienzindex (MEI) | 0.70 |
| Leistung P2 (kW) | 110 kW |
| Phasen | 3 |
| Spannung (V) | 380-400D/660-690Y V |
| Frequenz (Hz) | 50 Hz |
| Schutzart | IP55 (Protect. water jets/dust) |
| Frequenzumrichter | None |
| Max. Medientemp. (°C) | 120 °C |
| Min. Medientemp. (°C) | -25 °C |
| Max. Umgebungstemp. (°C) | 40 °C |
| Max. Betriebsdruck | 16 bar |
| Rohranschluss | DIN |
| Anschluss-Nenndruck | PN 16 |
| Einbaulänge (mm) | 1000 mm |
| Werkstoff Pumpengehäuse | Cast iron |
| Laufradwerkstoff | Cast iron |
| Wellendichtung | BQQE |
| Länge (mm) | 1000 mm |
| Höhe (mm) | 295 mm |
| Bruttogewicht | 1640 kg |
| Nettogewicht | 1480 kg |
| Motornummer | 93309399 |
| EAN-Code | 5715471299024 |

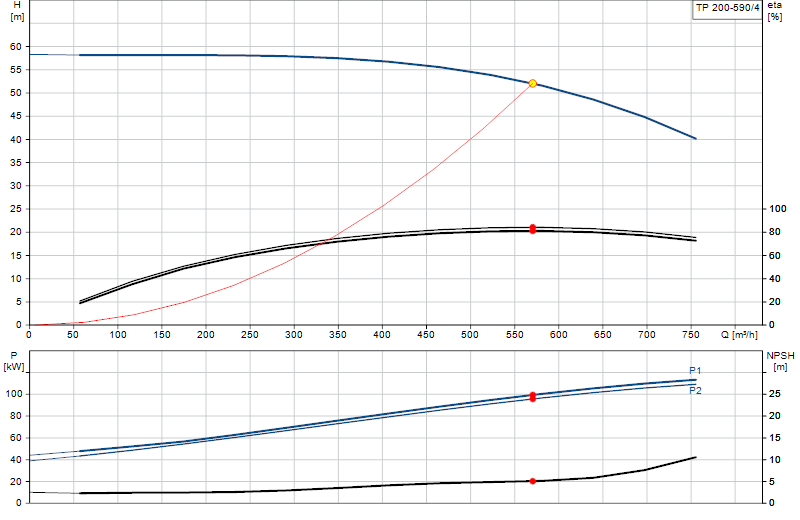

Kennlinie
Fahren Sie über die Kurve, um Förderstrom und Förderhöhe an jedem Punkt abzulesen.
Dokumente und Datenblätter
-
TP series 100 & 200 (Service instructions)
Service · English 0,7 MB -
TP Series 400 (Service Instructions)
Service · English 0,9 MB -
TP, TPD, TPE, TPED Series 300 (Service Instructions)
Service · English 1,1 MB -
TP (China)
Data booklets · English 7,4 MB -
TP, TPD, TPE, TPED, TPE2, TPE2 D, TPE3, TPE3 D, In-line circulator pumps (Data booklet)
Data booklets · English 29,6 MB -
NB, NBG, NK, NKG, TP, TPD, ATEX-approved pumps (Safety instructions)
Installation & operating instructions · English 0,8 MB -
NB, NBG, TP, TPD, ATEX-approved pumps (Installation and operating instructions)
Installation & operating instructions · English 1,4 MB -
TP (Series 400) (Installation and operating instructions)
Installation & operating instructions · English 6,8 MB -
TP, TPD (GB version) (Installation and operating instructions)
Installation & operating instructions · English 3,3 MB -
TP, TPD (I & O instructions)
Installation & operating instructions · English 1,5 MB -
TP, TPD (Safety instructions)
Installation & operating instructions · English 5,2 MB -
TPE2 (D),TPE3 (D) (Installation and operating instructions)
Installation & operating instructions · English 6,6 MB -
A Wide Range (English) (Product brochure)
Product Brochures · English 46,4 MB -
Beverage application pumps - Refresh your business with Grundfos (Product brochure)
Product Brochures · English 5,8 MB -
Food application pumps - Nourish your business with Grundfos (Product brochure)
Product Brochures · English 3,4 MB -
GRUNDFOS DISTRICT HEATING (Product brochure)
Product Brochures · English 7,5 MB -
Grundfos Industrial Solutions - Marine pumps (Product brochure)
Product Brochures · English 1,4 MB -
GRUNDFOS MPC, Taking your pump system efficiency to new heights (Product brochure)
Product Brochures · English 1,0 MB -
Industrial Cooling White paper (Product brochure)
Product Brochures · English 0,5 MB -
Industrial Pump Handbook (Handbook)
Product Brochures · English 22,6 MB -
Mechanical shaft seals for pumps (Handbook)
Product Brochures · English 6,9 MB -
OPTIMISED WATER SOLUTIONS, India version (Product brochure)
Product Brochures · English 2,5 MB -
Process Driven Engineering (Leaflet)
Product Brochures · English 5,7 MB -
PROFESSIONAL PUMPS AND SOLUTIONS, India version (Product brochure)
Product Brochures · English 43,0 MB -
PUMPS FOR BIOETHANOL AND BIODIESEL (Product brochure)
Product Brochures · English 1,1 MB -
TP, TPE (25 BAR RANGE) (Product brochure)
Product Brochures · English 2,5 MB -
TP/TPE (Product brochure)
Product Brochures · English 3,8 MB -
TP Series 400 / TP series 300 DN400 - Shaft seal (Service kit instruction)
Service · English 0,3 MB -
TP, TPE, TPD, TPED (Recommended spare parts) (Service Kit Catalogue)
Service · English 0,4 MB -
TP, TPE, TPD, TPED (Service Kit Catalogue)
Service · English 1,3 MB
