Technische Daten
| Pumpentyp | TP |
| Nennförderstrom (m³/h) | 133.1 m³/h |
| Nennförderhöhe (m) | 4.1 m |
| Mindesteffizienzindex (MEI) | 0.67 |
| Leistung P2 (kW) | 2.2 kW |
| Phasen | 3 |
| Spannung (V) | 220-240D/380-420Y V |
| Frequenz (Hz) | 50 Hz |
| Schutzart | IP55 |
| Frequenzumrichter | None |
| Max. Medientemp. (°C) | 120 °C |
| Min. Medientemp. (°C) | 0 °C |
| Max. Umgebungstemp. (°C) | 55 °C |
| Max. Betriebsdruck | 16 bar |
| Rohranschluss | DIN |
| Anschluss-Nenndruck | PN 16 |
| Einbaulänge (mm) | 800 mm |
| Werkstoff Pumpengehäuse | Cast iron |
| Laufradwerkstoff | Cast iron |
| Wellendichtung | BAQE |
| Länge (mm) | 800 mm |
| Höhe (mm) | 215 mm |
| Bruttogewicht | 261 kg |
| Nettogewicht | 232 kg |
| Motornummer | 83W02208 |
| EAN-Code | 5700396989143 |

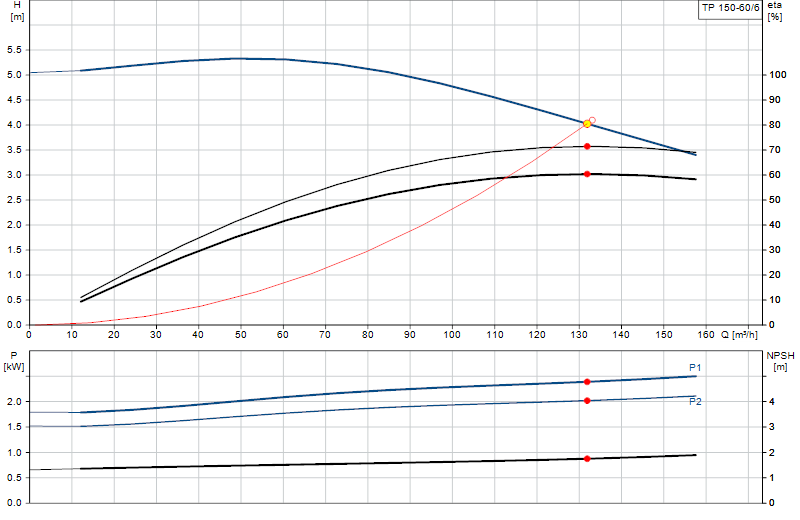

Kennlinie
