Technische Daten
| Pumpentyp | TP |
| Nennförderstrom (m³/h) | 243 m³/h |
| Nennförderhöhe (m) | 25 m |
| Mindesteffizienzindex (MEI) | 0.70 |
| Leistung P2 (kW) | 22 kW |
| Phasen | 3 |
| Spannung (V) | 380-415D/660-690Y V |
| Frequenz (Hz) | 50 Hz |
| Schutzart | IP55 Dust/Jetting |
| Frequenzumrichter | None |
| Max. Medientemp. (°C) | 120 °C |
| Min. Medientemp. (°C) | -25 °C |
| Max. Umgebungstemp. (°C) | 60 °C |
| Max. Betriebsdruck | 16 bar |
| Rohranschluss | DIN |
| Anschluss-Nenndruck | PN 16 |
| Einbaulänge (mm) | 620 mm |
| Werkstoff Pumpengehäuse | Cast iron |
| Laufradwerkstoff | Bronze |
| Wellendichtung | BQQE |
| Länge (mm) | 620 mm |
| Höhe (mm) | 210 mm |
| Bruttogewicht | 266 kg |
| Nettogewicht | 236 kg |
| Motornummer | 87470021 |
| EAN-Code | 5713834669965 |

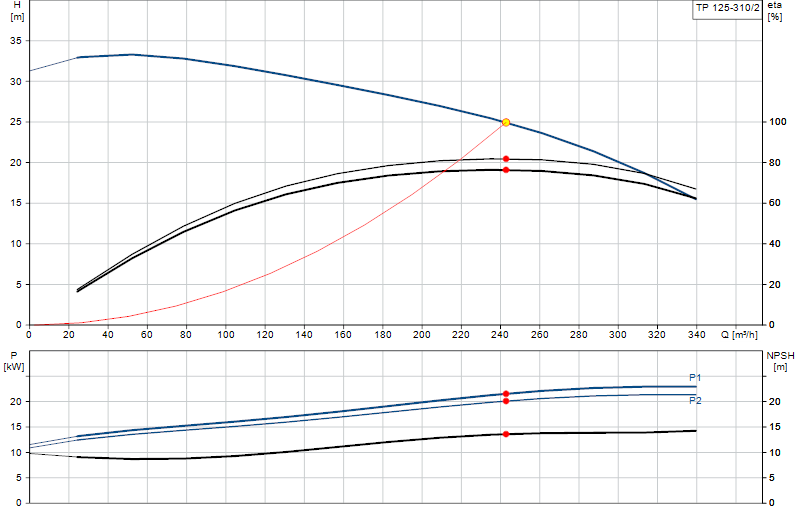

Kennlinie
