Technische Daten
| Pumpentyp | SPK |
| Leistung P2 (kW) | 0.18 kW |
| Phasen | 3 |
| Spannung (V) | 220-240/380-415 V |
| Frequenz (Hz) | 50 Hz |
| Schutzart | IP55 |
| Frequenzumrichter | None |
| Max. Medientemp. (°C) | 90 °C |
| Min. Medientemp. (°C) | -10 °C |
| Max. Umgebungstemp. (°C) | 40 °C |
| Werkstoff Pumpengehäuse | Cast iron |
| Wellendichtung | AUUV |
| Bruttogewicht | 12.2 kg |
| Nettogewicht | 10.9 kg |
| Zulassungen | CE,EAC,UKCA |
| Motornummer | 99995094 |
| EAN-Code | 5700391739118 |

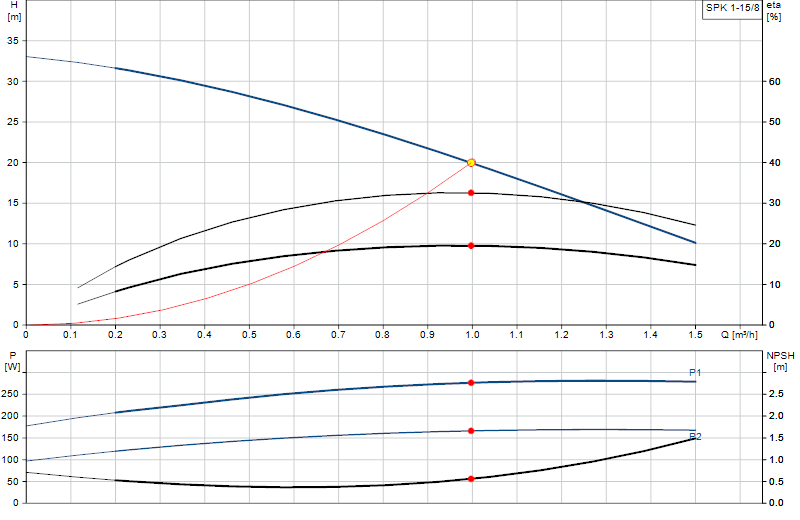

Kennlinie
Fahren Sie über die Kurve, um Förderstrom und Förderhöhe an jedem Punkt abzulesen.
