Technische Daten
| Pumpentyp | SP77 |
| Anzahl Stufen | 10 |
| Frequenz (Hz) | 50 Hz |
| Max. Medientemp. (°C) | 60 °C |
| Min. Medientemp. (°C) | -15 °C |
| Max. Betriebsdruck | 60 bar |
| Rohranschluss | Rp |
| Anschlussgröße | 5 inch |
| Laufradwerkstoff | Stainless steel |
| Bruttogewicht | 96.6 kg |
| Nettogewicht | 59 kg |
| Zulassungen | CE,EAC,UKCA,SEPRO,MOROCCO |
| EAN-Code | 5700391520440 |

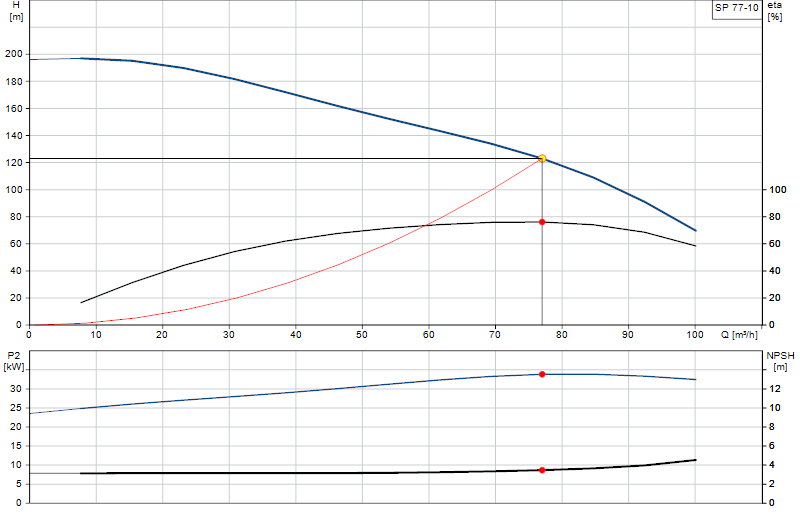

Kennlinie
Fahren Sie über die Kurve, um Förderstrom und Förderhöhe an jedem Punkt abzulesen.
