Technische Daten
| Pumpentyp | SP46 |
| Anzahl Stufen | 1 |
| Mindesteffizienzindex (MEI) | 0.40 |
| Leistung P2 (kW) | 1.1 kW |
| Phasen | 3 |
| Spannung (V) | 220-230 V |
| Frequenz (Hz) | 50 Hz |
| Schutzart | IP68 |
| Max. Medientemp. (°C) | 40 °C |
| Min. Medientemp. (°C) | -15 °C |
| Max. Betriebsdruck | 15 bar |
| Rohranschluss | Rp |
| Anschlussgröße | 4 inch |
| Laufradwerkstoff | Stainless steel |
| Bruttogewicht | 19.1 kg |
| Nettogewicht | 16.5 kg |
| Zulassungen | CE,EAC,UKCA,SEPRO,MOROCCO |
| Motornummer | 79102005 |
| EAN-Code | 5700393586321 |

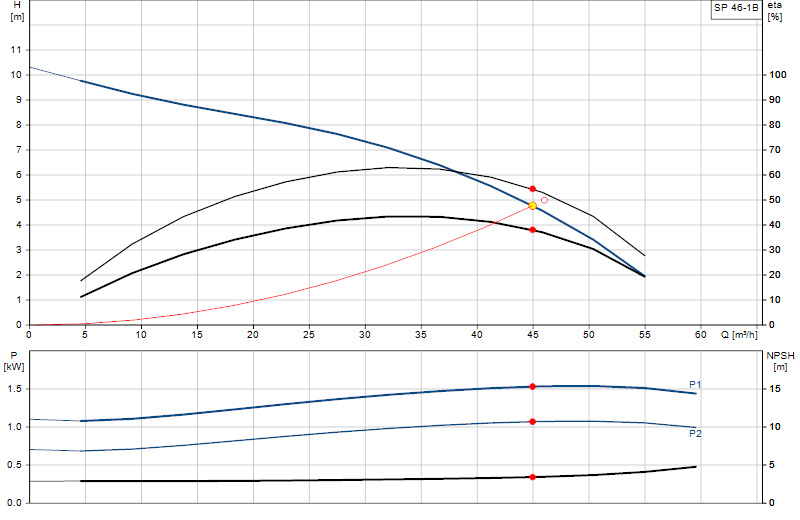

Kennlinie
Fahren Sie über die Kurve, um Förderstrom und Förderhöhe an jedem Punkt abzulesen.
